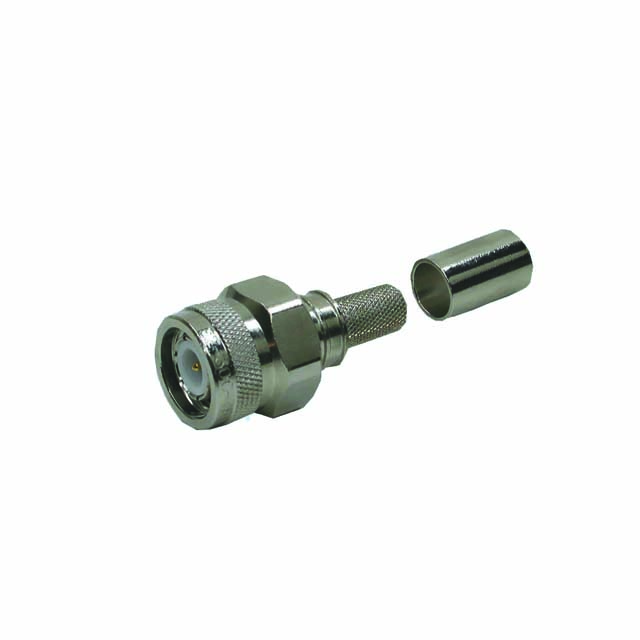

TNC-MALE (PLUG) CRIMP CONNECTOR

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

TNC-MALE (PLUG) CRIMP CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-300-TM-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-300
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Impedance	Cable Group	Contact Termination	Connector Style	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shield Termination	Connector Type	Mounting Type	Dielectric Material	Center Contact Material	Body Material	Body Finish	Voltage Rating	Mating Cycles
Amphenol Times Microwave Systems EZ-300-4310M-X	50 Ohms	LMR-300	Push On	4.3/10	Gold	6000 MHz	1	85 °C	-40 °C	Silver	Crimp	Male Pin Plug	Free Hanging (In-Line)
Amphenol Times Microwave Systems EZ-300-NM-75	75 Ohms	LMR-300-75	Push On	N Type	Gold	2 GHz	1	85 °C	-40 °C	Silver	Crimp	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Brass	Brass	Nickel	1000 VDC
Amphenol Times Microwave Systems EZ-300-NMH-X	50 Ohms	LMR-300	Push On	N Type	Gold	6000 MHz	1	155 °C	-55 °C	Silver	Crimp	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	White Bronze	500 V	500
Amphenol Times Microwave Systems EZ-300-NF-X	50 Ohms	LMR-300	Solder	N Type	Gold	6000 MHz	1	155 °C	-55 °C	Silver	Crimp	Female Socket Jack	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Phosphor Bronze	Brass	White Bronze	500 V	500
Amphenol Times Microwave Systems EZ-300-716M-RA-X	50 Ohms	LMR-300	Push On	7/16 DIN	Gold	7.5 GHz	1	85 °C	-40 °C	Silver	Crimp	Male Pin Plug	Free Hanging (In-Line) Right Angle
Amphenol Times Microwave Systems EZ-300-TM-X	50 Ohms	LMR-300	Push On	TNC	Gold	6000 MHz	1	125 °C	-55 °C	Silver	Crimp	Male Pin Plug	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	White Bronze	500 V	500
