10056845-S34KLF

Active

Amphenol ICC (FCI)

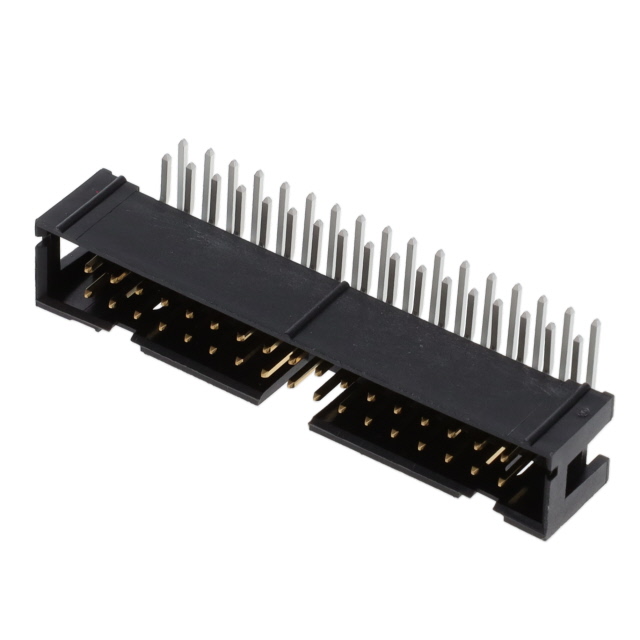

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 86130142114345E1LF +1

10056845-S34KLF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet 86130142114345E1LF +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10056845-S34KLF

Connector Type	Header
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.079 "
Contact Length - Post	2 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Detent Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.362 in
Insulation Height	9.2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

10056845 Series

Part	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Termination	Contact Shape	Features	Contact Material	Number of Rows	Style	Fastening Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Shrouding	Material Flammability Rating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 10056845-110KLF	Male Pin	10	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10056845-140LF	Male Pin	40	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10056845-134LF	Male Pin	34	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10056845-108LF	Male Pin	8	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10056845-130LF	Male Pin	30	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
Amphenol ICC (FCI) 10056845-S34KLF	Male Pin	34	0.1 in	2.54 mm	Header			0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in		Shrouded - 4 Wall	UL94 V-0		6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle
Amphenol ICC (FCI) 10056845-134KLF	Male Pin	34	0.1 in	2.54 mm	Header	2 çm	78.7 çin	0.079 "	2 mm	Black	Solder	Square	Keying Slot	Copper Alloy	2	Board to Cable/Wire	Detent Lock	0.362 in	9.2 mm	2.54 mm	0.1 in	Tin	Shrouded - 4 Wall	UL94 V-0	Gold GXT™	6 mm	0.236 in	Thermoplastic	All	Through Hole Right Angle	30 Áin	0.76 Ám
