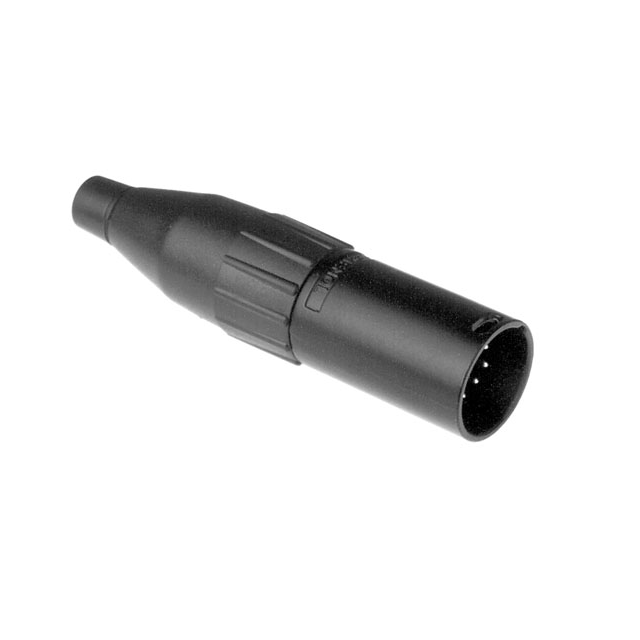

AC7MB BULK

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 7 PIN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 7 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	AC7MB BULK

Applications	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Latch Holder
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Backshell Material, Plating	Connector Type	Contact Material	Material Flammability Rating	Shell Size - Insert	Applications	Primary Material	Features	Current Rating (Amps)	Color	Orientation	Ingress Protection	Shell Material	Shell Finish	Mounting Type	Shielding	Fastening Type
Amphenol Sine Systems Corp AC7M BULK	-25 °C	75 ░C	7	Gold	Polyphenylene Ether (PPE)	Male Pins Receptacle	Brass	UL94 V-0	XLR	Audio	Metal	Backshell Cable Clamp	5 A	Silver	Keyed	IP40	Zinc Die Cast	Nickel	Free Hanging (In-Line)	Unshielded	Latch Holder
Amphenol Sine Systems Corp AC7MB BULK	-25 °C	75 ░C	7	Gold	Polyphenylene Ether (PPE)	Male Pins Receptacle	Brass	UL94 V-0	XLR	Audio	Metal	Backshell Cable Clamp	5 A	Black	Keyed	IP40	Zinc Die Cast	Black	Free Hanging (In-Line)	Unshielded	Latch Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 9.92

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
