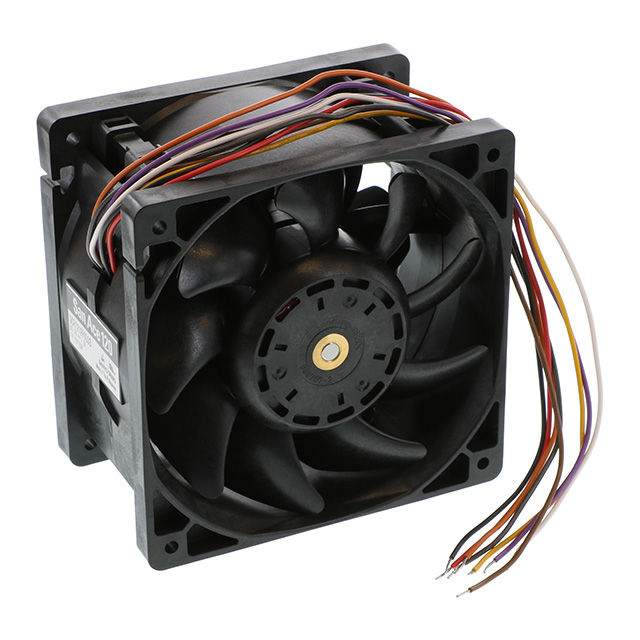

9CR1212P0G03
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 120X76MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
9CR1212P0G03
ActiveSanyo Denki America Inc.
FAN AXIAL DUAL 120X76MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9CR1212P0G03 |
|---|---|
| Air Flow | 8.4 mł/min |
| Air Flow | 300 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 7.2 A |
| Fan Type | Tubeaxial (Dual) |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 70 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 86.4 W |
| RPM [custom] | 3800 RPM |
| RPM [custom] | 6200 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 480.8 Pa |
| Static Pressure | 1.93 in H2O |
| Termination | 4 Wire Leads per Fan |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 670 g |
| Weight | 1.5 lb |
| Width [y] | 76 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.08 | |
| 18 | $ 94.44 | |||
| 27 | $ 93.11 | |||
| 54 | $ 87.12 | |||
| 108 | $ 85.13 | |||
Description
General part information
9CR1212 Series
Fan Tubeaxial (Dual) 12VDC Square - 120mm L x 120mm H Ball 300.0 CFM (8.40m³/min) 4 Wire Leads per Fan
