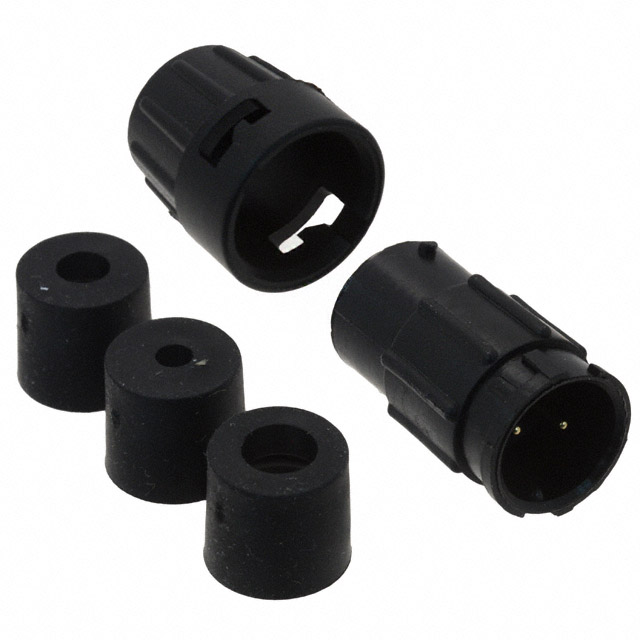

8282-2PG-3DC
ActiveConxall/Switchcraft
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
8282-2PG-3DC
ActiveConxall/Switchcraft
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8282-2PG-3DC |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
8282-2PG Series
| Part | Features | Shielding | Contact Material | Applications | Number of Positions | Ingress Protection | Primary Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Contact Finish - Mating | Color | Orientation | Mounting Type | Connector Type | Voltage Rating | Fastening Type | Current Rating (Amps) | Backshell Material, Plating | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C | |||||||||
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C | 0.15 in 0.17 in | 3.81 mm 4.32 mm | |||||||||||
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C | 0.13 in 0.15 in | 3.3 mm 3.81 mm | |||||||||||
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C | 2.29 mm | 0.09 in 0.14 in | 3.56 mm | ||||||||||
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | |||||||||
Conxall/Switchcraft | Backshell | Unshielded | Brass | Automotive Communication Systems Instrumentation | 2 | Weathertight | Plastic | Gold | Black | Keyed | Free Hanging (In-Line) | Male Pins Receptacle | 600 V | Bayonet Lock | Varies by Wire Gauge | Nylon Polyamide (PA) | -40 °C | 115 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.08 | |
| 10 | $ 9.07 | |||
| 100 | $ 8.11 | |||
| 1000 | $ 6.01 | |||
Description
General part information
8282-2PG Series
2 Position Circular Connector Receptacle, Male Pins Solder Cup
