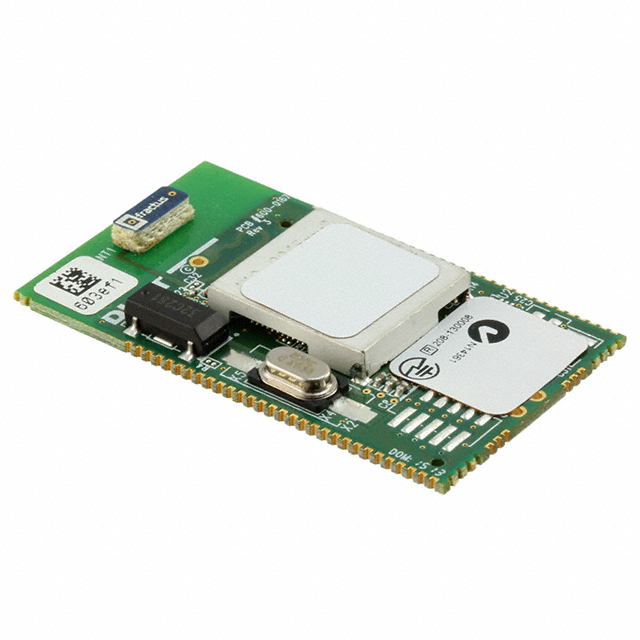

SmartMesh WirelessHARTwireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP™5901-WHM is the SmartMesh WirelessHART mote product in the Eterna®family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.The LTP5901-WHM includes an onboard chip antenna and comes with modular RF certifications. Also available are theLTC5800-WHMMote-on-Chip and theLTP5902-WHMmodule which includes an MMCX antenna connector.With Analog Devices' time-synchronized SmartMesh WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5901-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).Network FeaturesFeaturesBenefitTime Synchronized Channel Hopping Communications>99.999% network reliability in even the most challenging RF environments.Sub 50 µA RoutersCan build out a network without any line powered devices. Flexibility to be line powered or energy harvested if desired.Secure Mesh with 128-bit AES EncryptionNIST Certified Security. Compromise of one node does not compromise network.Standards-basedCompliant to IEC62591 (WirelessHART).Highly Accurate Time StampingTime stamping on every node is available to applications with millisecond accuracy.Device FeaturesFeaturesBenefitIndustry-Leading Low Power Radio Technology4.5mA to Receive a Packet5.4mA to Transmit at 0dBm9.7mA to Transmit at 8dBmPre-engineered RFRF elements include an on-chip power amplifier and are pre-tuned for optimized performance, including temperature compensation, saving development time.RF Modular CertificationsPre-certified in USA, Canada, EU, Japan, andmoreEnergy Harvesting SupportVery low power design enables motes to be powered by a wide variety of energy harvesters.ApplicationsLearn more about SmartMesh applications.
