8-1415899-5
ActiveTE Connectivity Potter & Brumfield Relays

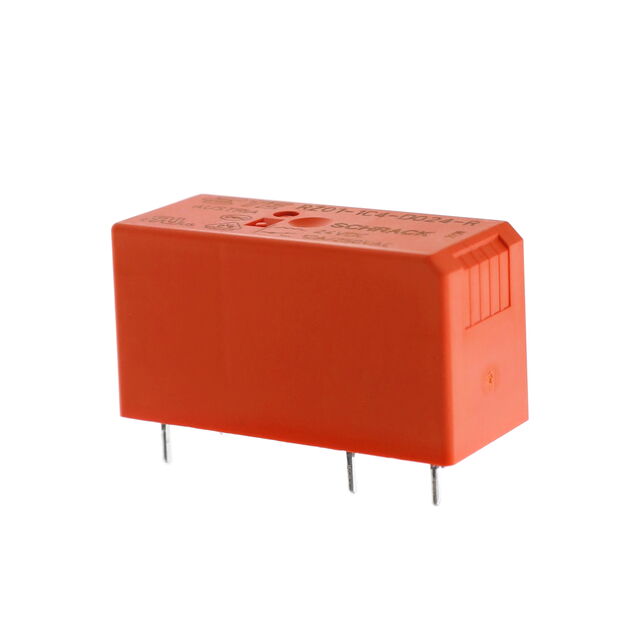

RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1415899-5
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 12A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1415899-5 |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 16.7 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1440 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 4800 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.93 | |
| 20 | $ 1.80 | |||
| 40 | $ 1.52 | |||
| 100 | $ 1.44 | |||
| 260 | $ 1.41 | |||
Description
General part information
RZ03-1C4 Series
General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
