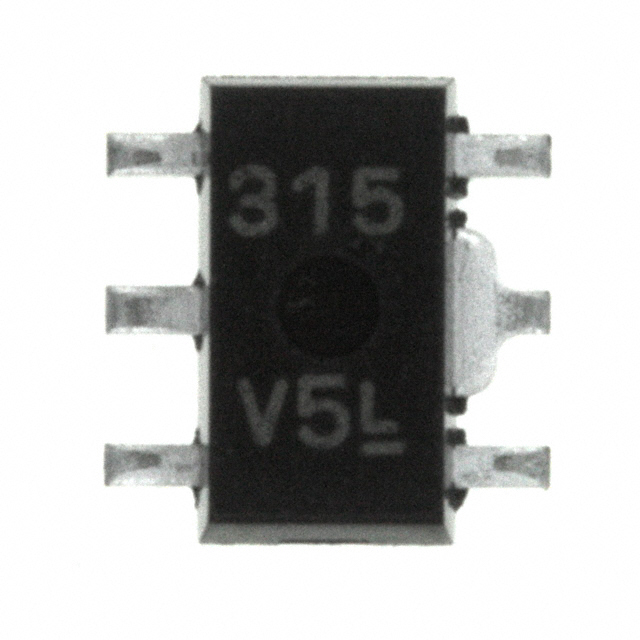

PQ1N333MCSPQ

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 350MA SOT89

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

IC REG LINEAR 3.3V 350MA SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	PQ1N333MCSPQ

Control Features	Reset
Current - Output	350 mA
Current - Quiescent (Iq)	2 mA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-243AA
Protection Features	Over Current, Over Temperature
PSRR	55 dB
Voltage - Input (Max) [Max]	9 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.7 V

Part	Control Features	Current - Quiescent (Iq)	Output Configuration	PSRR	Protection Features	Voltage Dropout (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Number of Regulators	Package / Case	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Output Type
Sharp Microelectronics PQ1N333MCSPQ	Reset	2 mA	Positive	55 dB	Over Current Over Temperature	0.7 V	Surface Mount	-30 ░C	85 °C	350 mA	1	TO-243AA	3.3 V	9 V	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 350mA SOT-89
