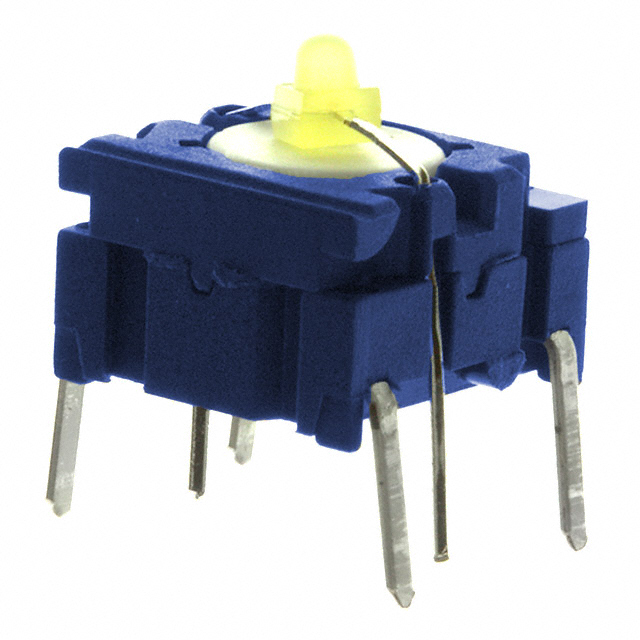

3ATL640

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	3ATL640

Actuator Height off PCB, Vertical [z]	6.4 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole
Operating Force	300 gf
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

Part	Operating Force	Termination Style	Ingress Protection	Illumination Type, Color	Circuit	Actuator Height off PCB, Vertical [z]	Features	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Switch Function	Illumination Voltage (Nominal)	Switch Travel	Mounting Type	Actuator Type	Actuator Orientation	Mechanical Life	Outline [x]	Outline [y]	Contact Rating @ Voltage
MEC Switches 3ATL620	300 gf	PC Pin	IP67 - Dust Tight Waterproof	Green LED	SPST-NO	6.4 mm	Sealed - Flux Protection	Polybutylene Terephthalate (PBT)	-40 °C	115 °C	Illuminated	Off-Mom	2.1 VDC	1 mm	Through Hole	Plunger for Cap	Top Actuated	10000000 Cycles	10.1 mm	10.1 mm	0.05 A 24 VDC
MEC Switches 3ATL6Q	300 gf	PC Pin	IP67 - Dust Tight Waterproof		SPST-NO	6.4 mm	Sealed - Flux Protection	Polybutylene Terephthalate (PBT)	-40 °C	115 °C	Non-Illuminated	Off-Mom		1 mm	Through Hole	Plunger for Cap	Top Actuated	10000000 Cycles	10.1 mm	10.1 mm	0.05 A 24 VDC
MEC Switches 3ATL640	300 gf	PC Pin	IP67 - Dust Tight Waterproof	LED Yellow	SPST-NO	6.4 mm	Sealed - Flux Protection	Polybutylene Terephthalate (PBT)	-40 °C	115 °C	Illuminated	Off-Mom	2.1 VDC	1 mm	Through Hole	Plunger for Cap	Top Actuated	10000000 Cycles	10.1 mm	10.1 mm	0.05 A 24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
