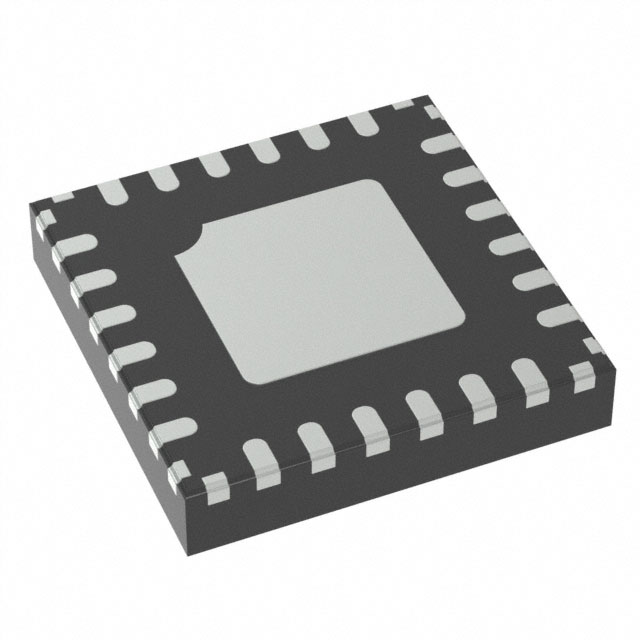

ARG81800KESJSR-1

Active

Allegro MicroSystems

IC REG BUCK 0.8V 500MA 20QFN

Search across all available documentation for this part.

Active

Allegro MicroSystems

IC REG BUCK 0.8V 500MA 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	ARG81800KESJSR-1

Current - Output	500 mA
Frequency - Switching [Max]	2.4 MHz
Frequency - Switching [Min]	250 kHz
Function	Step-Down
Grade	Automotive
Mounting Type	Wettable Flank, Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	20-WFQFN Exposed Pad
Qualification	AEC-Q100
Supplier Device Package	20-QFN (4x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	3.5 V
Voltage - Output (Min/Fixed)	0.8 V

Part	Mounting Type	Package / Case	Current - Output	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Function	Output Type	Synchronous Rectifier	Topology	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Input (Max) [Max]	Grade	Qualification	Voltage - Output (Min/Fixed)	Number of Outputs	Supplier Device Package
Allegro MicroSystems ARG81800KESJSR-1	Surface Mount Wettable Flank	20-WFQFN Exposed Pad	500 mA	Positive	150 °C	-40 °C	3.5 V	Step-Down	1.81 mOhm		Buck	2.4 MHz	250 kHz	36 V	Automotive	AEC-Q100	0.8 V	1	20-QFN (4x4)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 0.8V 1 Output 500mA 20-WFQFN Exposed Pad
