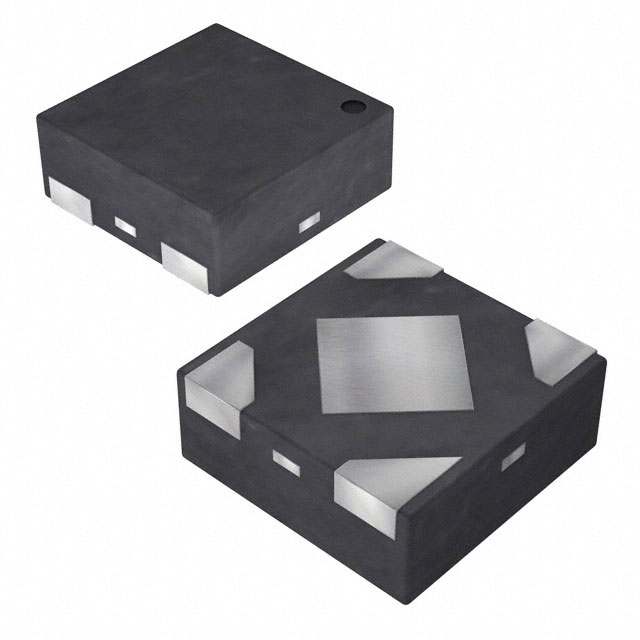

XC6223T2719R-G

Active

Torex Semiconductor Ltd

IC REG LIN 2.7V 300MA USPQ-4B03

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XC6223T2719R-G

Active

Torex Semiconductor Ltd

IC REG LIN 2.7V 300MA USPQ-4B03

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC6223T2719R-G

Control Features	Enable
Current - Output	300 mA
Current - Quiescent (Iq)	220 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	4-XDFN Exposed Pad
Protection Features	Over Current, Over Temperature
PSRR	80 dB
Supplier Device Package	USPQ-4B03
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	2.7 V
Voltage Dropout (Max) [Max]	0.35 V

XC6223 Series

...

Part	Voltage - Input (Max) [Max]	Control Features	Voltage - Output (Min/Fixed)	Protection Features	Supplier Device Package	Voltage Dropout (Max) [Max]	Mounting Type	Current - Quiescent (Iq)	Number of Regulators	Current - Output	Output Type	PSRR	Output Configuration	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Torex Semiconductor Ltd XC6223N35BNR-G	5.5 V	Enable	3.55 V	Over Current Over Temperature	SSOT-24	0.305 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-82	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N331MR-G	5.5 V	Enable	3.3 V	Over Current Over Temperature	SOT-25	0.305 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-74A SOT-753	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N16BNR-G	5.5 V	Enable	1.65 V	Over Current Over Temperature	SSOT-24	0.44 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-82	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N34BGR-G	5.5 V	Enable	3.45 V	Over Current Over Temperature	4-USP (1.2x1.6)	0.305 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	4-UDFN Exposed Pad	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N261MR-G	5.5 V	Enable	2.6 V	Over Current Over Temperature	SOT-25	0.35 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-74A SOT-753	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N24BGR-G	5.5 V	Enable	2.45 V	Over Current Over Temperature	4-USP (1.2x1.6)	0.38 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	4-UDFN Exposed Pad	105 °C	-40 °C
Torex Semiconductor Ltd XC6223T141NR-G	5.5 V	Enable	1.4 V	Over Current Over Temperature	SSOT-24	0.52 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-82	105 °C	-40 °C
Torex Semiconductor Ltd XC6223N301MR-G	5.5 V	Enable		Over Current Over Temperature	SOT-25	0.305 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	SC-74A SOT-753	105 °C	-40 °C
Torex Semiconductor Ltd XC6223T2719R-G	5.5 V	Enable	2.7 V	Over Current Over Temperature	USPQ-4B03	0.35 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	4-XDFN Exposed Pad	105 °C	-40 °C
Torex Semiconductor Ltd XC6223T321GR-G	5.5 V	Enable	3.2 V	Over Current Over Temperature	4-USP (1.2x1.6)	0.305 V	Surface Mount	220 µA	1	300 mA	1.81 mOhm	80 dB	Positive	4-UDFN Exposed Pad	105 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.57
		10	$ 0.50
		25	$ 0.47
		100	$ 0.38
		250	$ 0.36
		500	$ 0.30
		1000	$ 0.24
		2500	$ 0.22
	Digi-Reel®	1	$ 0.57
		10	$ 0.50
		25	$ 0.47
		100	$ 0.38
		250	$ 0.36
		500	$ 0.30
		1000	$ 0.24
		2500	$ 0.22
	Tape & Reel (TR)	5000	$ 0.20
		10000	$ 0.20
		25000	$ 0.19
		50000	$ 0.19

Description

General part information

XC6223 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA USPQ-4B03

Documents

Technical documentation and resources
