ASMG020X113S17
ActiveSiretta Ltd

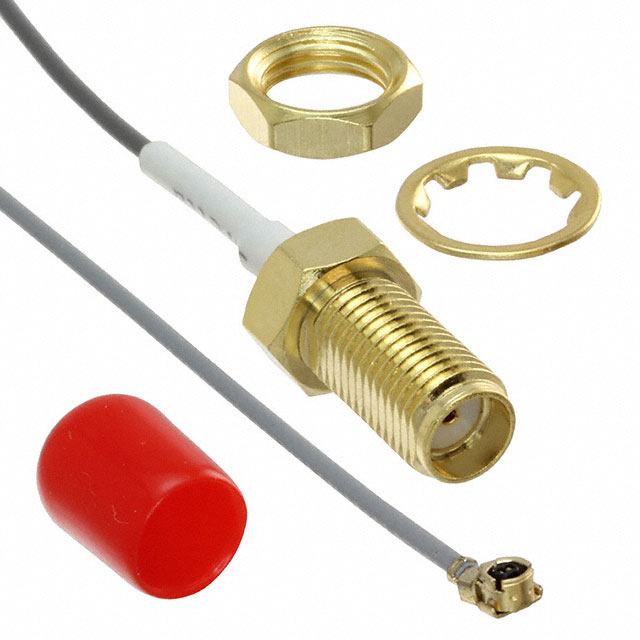

CBL ASSY U.FL-SMA JCK-PLG 7.874"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMG020X113S17
ActiveSiretta Ltd
CBL ASSY U.FL-SMA JCK-PLG 7.874"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMG020X113S17 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Gray |
| Features | Shielded, Protective Cap |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.23 | |
| 10 | $ 9.96 | |||
| 30 | $ 9.57 | |||
| 50 | $ 9.19 | |||
| 100 | $ 8.68 | |||
| 250 | $ 7.91 | |||
| 500 | $ 7.40 | |||
| 1000 | $ 7.01 | |||
Description
General part information
ASMG020 Series
Cable Assembly Coaxial U.FL (UMCC) to SMA 1.13mm OD Coaxial Cable 7.874" (200.00mm)
