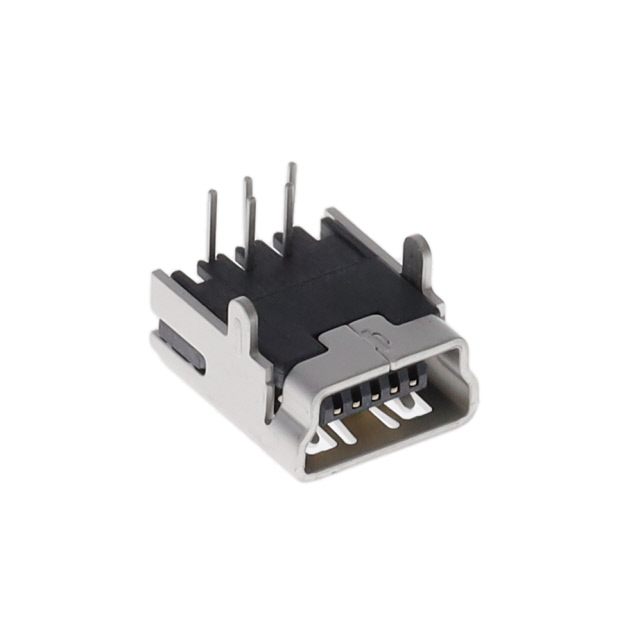

GMSB0522132EU
ActiveAmphenol ICC (Commercial Products)
MINI USB 5POS , B TYPE , R/A , D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GMSB0522132EU
ActiveAmphenol ICC (Commercial Products)
MINI USB 5POS , B TYPE , R/A , D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GMSB0522132EU |
|---|---|
| Connector Type | USB - mini B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1 A, 1.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.21 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.98 | |||
| 50 | $ 0.96 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.83 | |||
| Tape & Reel (TR) | 550 | $ 0.75 | ||
| 1100 | $ 0.67 | |||
| 1650 | $ 0.62 | |||
| 2750 | $ 0.60 | |||
| 5500 | $ 0.58 | |||
| 13750 | $ 0.54 | |||
Description
General part information
GMSB052 Series
USB - mini B USB 2.0 Receptacle Connector 5 Position Through Hole, Right Angle
