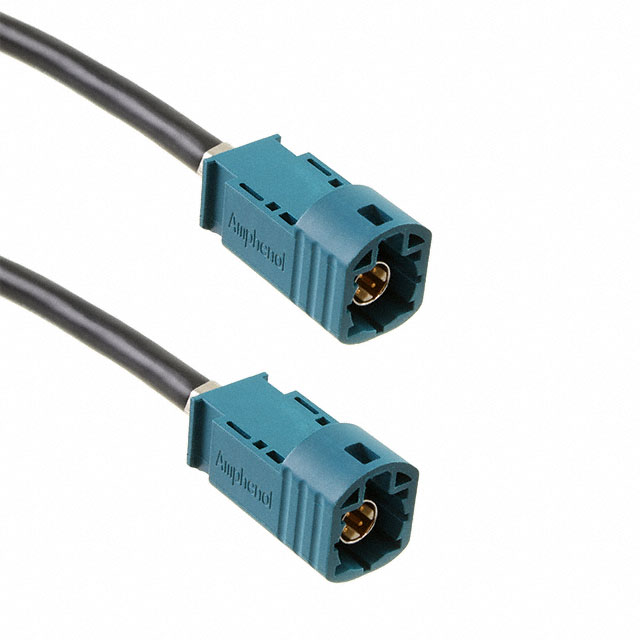

HSDSPZSPZ06-20

Active

Amphenol RF

CBL CIRC 4POS MALE TO MALE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSDSPZSPZ06-20

Active

Amphenol RF

CBL CIRC 4POS MALE TO MALE 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSDSPZSPZ06-20

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	Z
1st Connector Type	Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	Z
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Type	Round
Color	Black
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded

HSDSPZSPZ Series

Part	1st Connector Number of Positions	Cable Type	2nd Connector Number of Positions Loaded	1st Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Type	1st Connector Gender	1st Connector Orientation	2nd Connector Mounting Type	2nd Connector Number of Positions	Shielding	1st Connector Mounting Type	Color	Length	Length	2nd Connector Orientation	Length [x]	Length [x]
Amphenol RF HSDSPZSPZ14-21	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black	3.66 m	12 ft	Z
Amphenol RF HSDSPZSPZ22-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black			Z	98.4 ft	30 m
Amphenol RF HSDSPZSPZ02-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black			Z	1.64 ft	500 mm
Amphenol RF HSDSPZSPZ15-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black			Z	15 ft	4.57 m
Amphenol RF HSDSPZSPZ01-21	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black	304.8 mm	1 ft	Z
Amphenol RF HSDSPZSPZ10-21	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black	1.83 m	6 ft	Z
Amphenol RF HSDSPZSPZ21-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black	22.9 m	22.86 m	Z
Amphenol RF HSDSPZSPZ23-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black			Z	100 ft	30.5 m
Amphenol RF HSDSPZSPZ06-20	4	Round	All	Plug	All	Standard	Plug	Male Pins	Z	Free Hanging (In-Line)	4	Unshielded	Free Hanging (In-Line)	Black			Z	3.28 ft	1 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 50.63
		10	$ 46.46
		25	$ 44.67
		50	$ 43.18
		100	$ 40.80
		250	$ 39.61

Description

General part information

HSDSPZSPZ Series

Cable Assembly 3.28' (1.00m)
