3CV-PL(40)

Hirose Electric USA, Inc.

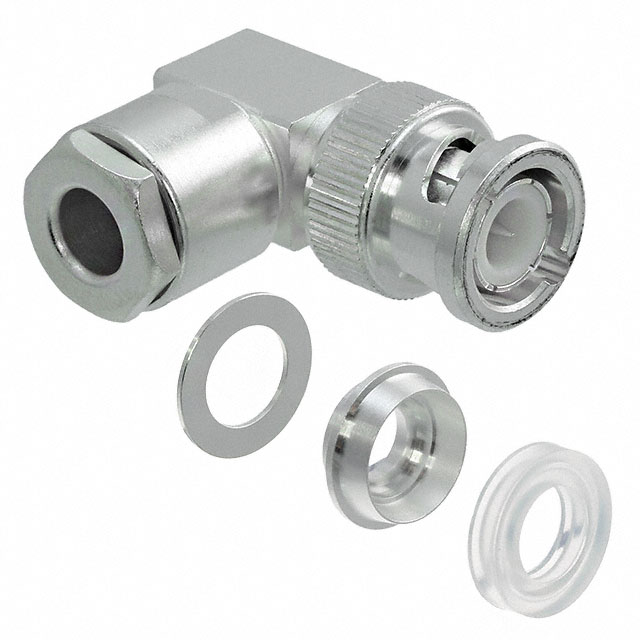

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	3CV-PL(40)

Body Finish	Silver
Body Material	Brass
Cable Group	3C-2V
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Clamp

Part	Housing Color	Mating Cycles	Center Contact Plating	Center Contact Material	Shield Termination	Body Finish	Fastening Type	Impedance	Dielectric Material	Connector Type	Cable Group	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Connector Style	Frequency - Max [Max]	Mounting Type	Number of Ports
Hirose Electric USA, Inc. 3CV-PL(40)	Silver	1000	Silver	Brass	Clamp	Silver	Bayonet Lock	50 Ohms	Polytetrafluoroethylene (PTFE)	Male Pin Plug	3C-2V	Solder	-30 ░C	60 °C	Brass	BNC	4 GHz	Free Hanging (In-Line) Right Angle	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.83

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
