AOZ1353LI-02

Active

Alpha & Omega Semiconductor Inc.

5V/3A ECPOWER PROTECTION SWITCH

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

5V/3A ECPOWER PROTECTION SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ1353LI-02

Current - Output (Max) [Max]	3.5 A
Fault Protection	Over Temperature, UVLO, Short Circuit, Over Voltage, Current Limiting (Adjustable)
Features	Status Flag, Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	12-UFBGA, WLCSP
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	32 mOhm
Switch Type	USB Switch
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	3.4 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Input Type	Output Type	Current - Output (Max) [Max]	Output Configuration	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Ratio - Input:Output [custom]	Number of Outputs	Interface	Voltage - Supply (Vcc/Vdd)	Switch Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Mounting Type
Alpha & Omega Semiconductor Inc. AOZ1353LI-02	12-UFBGA WLCSP	Non-Inverting	N-Channel	3.5 A	High Side	5.5 V	3.4 V	32 mOhm	1:1	1	On/Off		USB Switch	Auto Restart Status Flag	85 °C	-40 °C	Current Limiting (Adjustable) Over Temperature Over Voltage Short Circuit UVLO	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

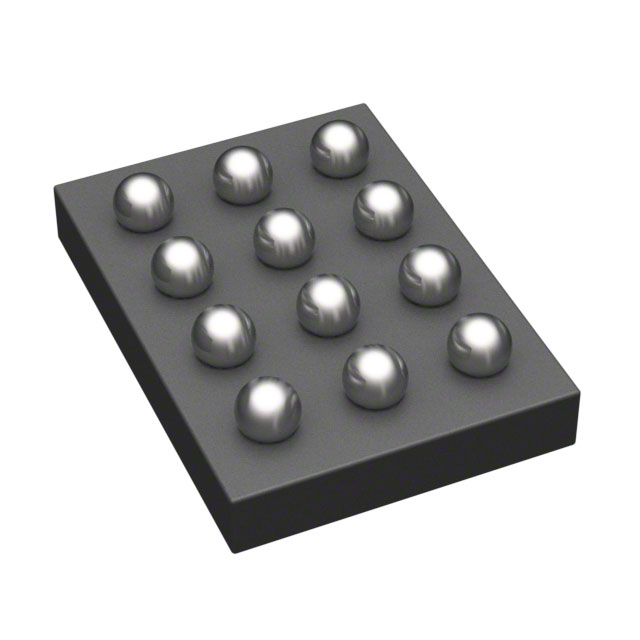

Power Switch/Driver 1:1 N-Channel 3.5A 12-WLCSP (1.81x1.31)
