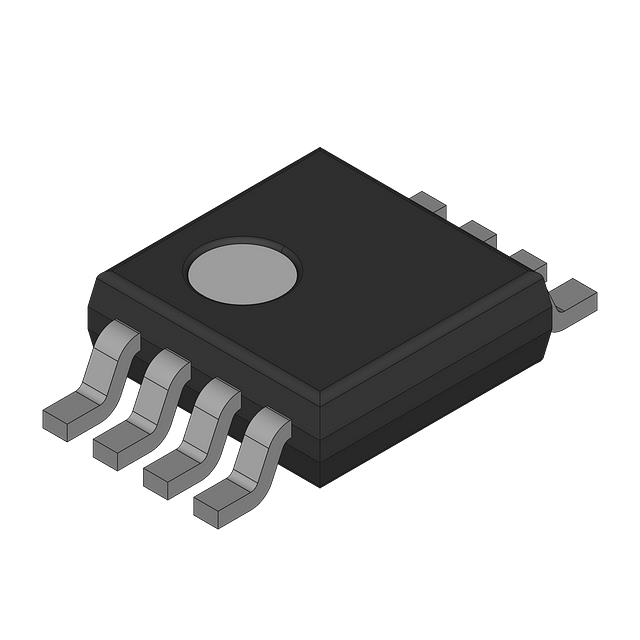

BQ24203DGN
ActiveBenchmarq
IC BATT CHG LI-ION 1CELL 8MSOP
Deep-Dive with AI
Search across all available documentation for this part.
BQ24203DGN
ActiveBenchmarq
IC BATT CHG LI-ION 1CELL 8MSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BQ24203DGN |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Battery Pack Voltage | 4.1 V |
| Charge Current - Max [Max] | 500 mA |
| Current - Charging | Constant |
| Fault Protection | Over Temperature, Short Circuit |
| Mounting Type | Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Exposed Pad, 8-TSSOP, 8-MSOP |
| Package / Case [custom] | 0.118 in, 3 mm |
| Programmable Features | Current, Timer |
| Supplier Device Package | 8-MSOP-PowerPad |
| Voltage - Supply (Max) [Max] | 13.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 86 | $ 3.53 | |
| Tube | 1 | $ 6.64 | ||
| 10 | $ 5.11 | |||
| 80 | $ 4.36 | |||
| 160 | $ 4.20 | |||
| 320 | $ 4.06 | |||
| 560 | $ 3.97 | |||
| 1040 | $ 3.88 | |||
| 2560 | $ 3.78 | |||
Description
General part information
BQ24203 Series
Charger IC Lithium Ion/Polymer 8-MSOP-PowerPad
Documents
Technical documentation and resources
No documents available
