7410W 0605000

Active

Belden Inc.

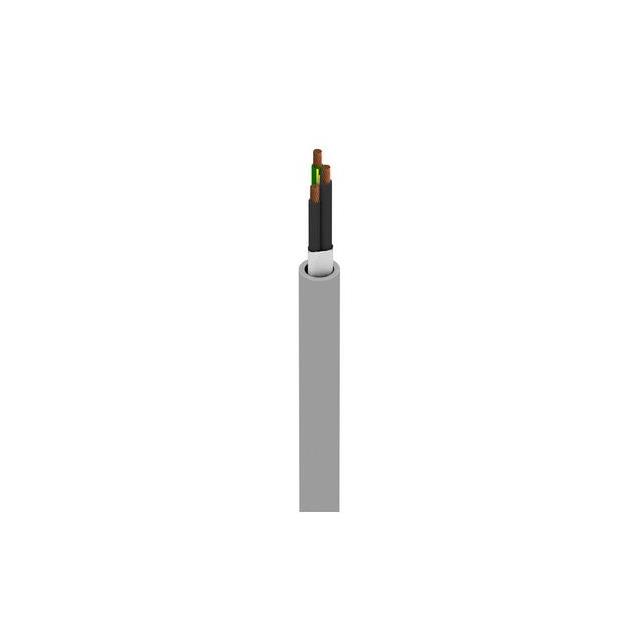

CABLE 3COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	7410W 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	7.34 mm
Jacket (Insulation) Diameter [diameter]	0.289 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Chrome
Number of Conductors	3
Ratings	UL Style 20328
Wire Gauge	18 AWG

Part	Jacket Color	Number of Conductors	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Cable Type	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Material	Wire Gauge
Belden Inc. 7410W 0605000	Chrome	3	Oil Resistant UV Resistant	1.194 mm	0.047 in	7.34 mm	0.289 in	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	UL Style 20328	16	30 AWG	Copper Bare	Thermoplastic Elastomer (TPE)	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 1.92

General part information

3 Conductor Multi-Conductor Cable Chrome 18 AWG 5000' (1524.0m)
