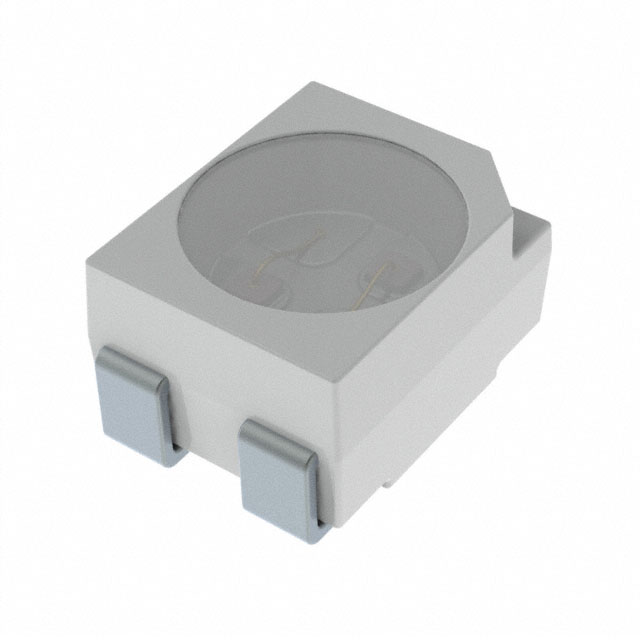

LSG T67K-JL-1-0+HK-1-0-2-R18-Z
Activeams-OSRAM USA INC.
LED GREEN/RED CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSG T67K-JL-1-0+HK-1-0-2-R18-Z
Activeams-OSRAM USA INC.
LED GREEN/RED CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LSG T67K-JL-1-0+HK-1-0-2-R18-Z |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 7 mcd, 11.25 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.6 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V, 1.8 V |
| Wavelength - Dominant | 630 nm, 570 nm |
| Wavelength - Peak | 643 nm, 572 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 2000 | $ 0.14 | ||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
Description
General part information
LSGT67K Series
Green, Red 570nm Green, 630nm Red LED Indication - Discrete 1.8V Green, 1.8V Red 4-SMD, J-Lead
