SDF-V09-113L011

Active

MH Connectors

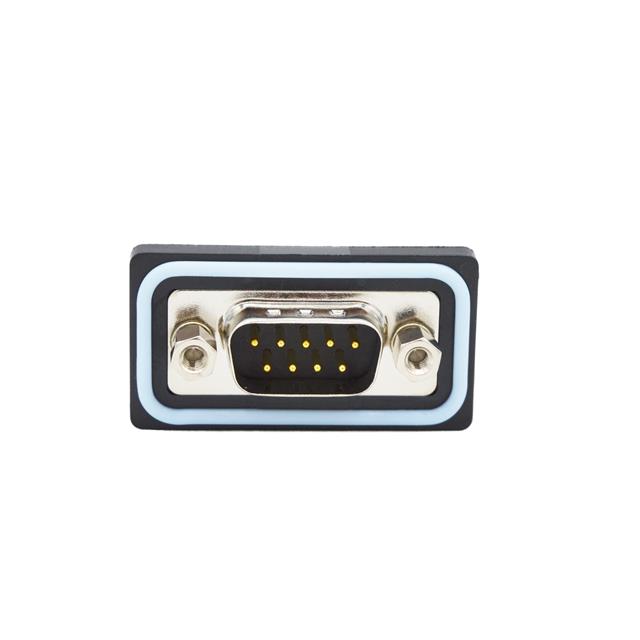

CONN D-SUB PLG 9POS PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-V09-113L011

Active

MH Connectors

CONN D-SUB PLG 9POS PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-V09-113L011

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

SDF-V09 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Termination	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Dielectric Material	Color	Contact Type	Current Rating (Amps)	Ingress Protection	Number of Positions	Shell Material, Finish	Features	Connector Type	Mounting Type	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness
MH Connectors SDF-V09-113L051	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0	Flash	Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel	Board Lock Grounding Indents	Male Pins Plug	Panel Mount Through Hole	Gold	Brass
MH Connectors SDF-V09-213L052	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0		Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel		Receptacle Female Sockets	Panel Mount Through Hole	Gold	Brass	0.76 Ám	30 Áin
MH Connectors SDF-V09-213L012	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0		Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel		Receptacle Female Sockets	Panel Mount Through Hole	Gold	Brass	0.76 Ám	30 Áin
MH Connectors SDF-V09-213L011	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0	Flash	Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel		Receptacle Female Sockets	Panel Mount Through Hole	Gold	Brass
MH Connectors SDF-V09-213L051	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0	Flash	Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel		Receptacle Female Sockets	Panel Mount Through Hole	Gold	Brass
MH Connectors SDF-V09-113L011	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0	Flash	Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel	Grounding Indents	Male Pins Plug	Panel Mount Through Hole	Gold	Brass
MH Connectors SDF-V09-113L012	-25 °C	85 °C	D-Sub	Solder	Female Screwlock (4-40) Mating Side	DE E	1	2	UL94 V-0		Polybutylene Terephthalate (PBT)	Black	Signal	5 A	IP67 - Dust Tight Waterproof	9	Nickel Plated Steel	Grounding Indents	Male Pins Plug	Panel Mount Through Hole	Gold	Brass	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.34
		10	$ 6.40
		25	$ 5.79
		40	$ 5.50
		63	$ 7.18
		80	$ 5.41
		126	$ 6.84
		252	$ 6.51
		504	$ 6.20
		1008	$ 5.91

Description

General part information

SDF-V09 Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources
