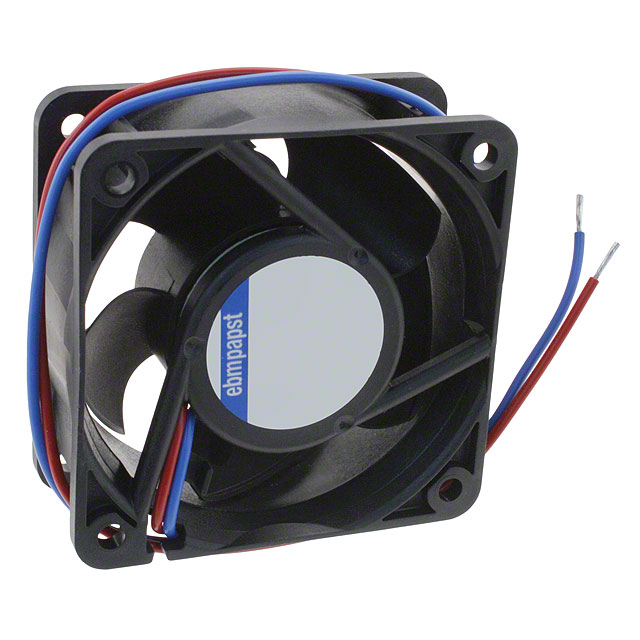

624HH

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	624HH

Air Flow	0.924 mł/min
Air Flow	33 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	43 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.6 W
RPM	8200 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	0.187 lb
Weight	84.82 g
Width [y]	25.4 mm

Part	Power (Watts)	Termination	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Bearing Type	Approval Agency	Material - Frame	Width [y]	Fan Type	RPM	Air Flow	Air Flow	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Material - Blade
ebm-papst Inc. 624HH	3.6 W	2 Wire Leads	65000 Hrs	18 VDC	28 VDC	60 mm	60 mm	24 VDC	Ball	CE CSA UL VDE	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	25.4 mm	Tubeaxial	8200 RPM	0.924 mł/min	33 CFM	43 dB	-20 °C	70 °C	-20 C	70 °C	0.187 lb	84.82 g	Fiberglass Reinforced Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 33.0 CFM (0.924m³/min) 2 Wire Leads
