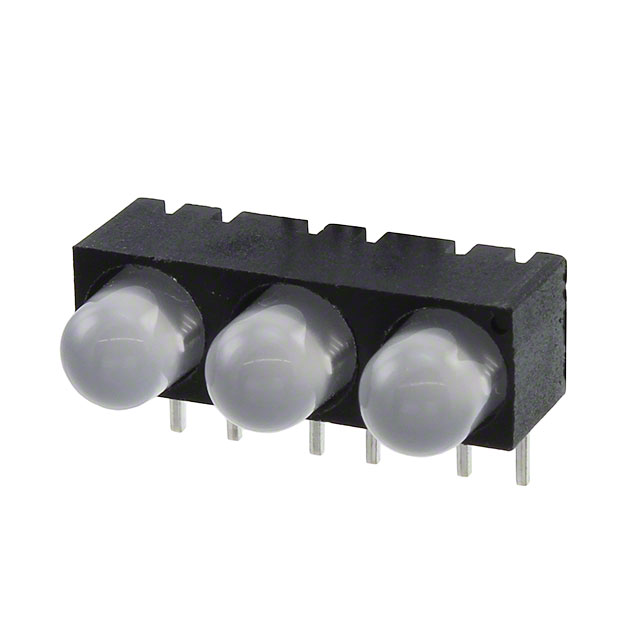

5503005003F
ActiveDIALIGHT
LED CBI 5MM TRI GRN/RED RA
Deep-Dive with AI
Search across all available documentation for this part.
5503005003F
ActiveDIALIGHT
LED CBI 5MM TRI GRN/RED RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5503005003F |
|---|---|
| Color | Green, Red (x 3) |
| Configuration | 3 Wide |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 40 mcd, 90 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.8 V, 2.1 V |
| Wavelength - Peak [custom] | 660 nm, 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 220 | $ 3.29 | |
Description
General part information
5503005 Series
LED Circuit Board Indicator LED Circuit Board Indicator 3 Wide Green, Red (x 3) Diffused 2.1V Green, 1.8V Red 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
