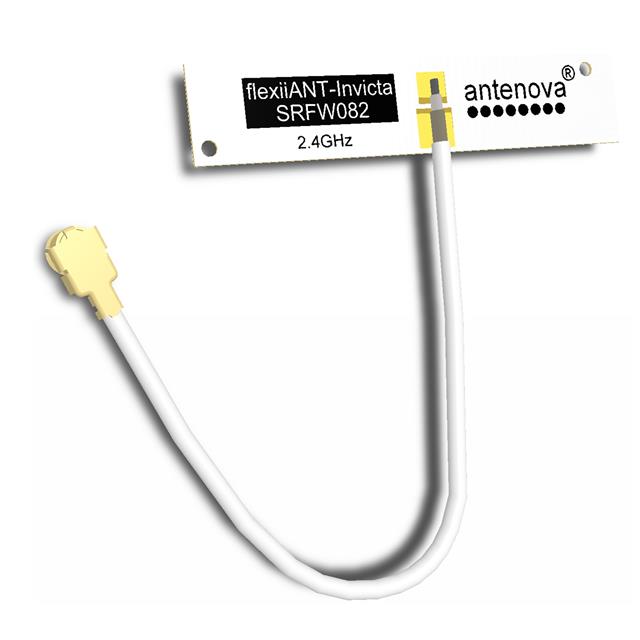

SRFW082-100
ActiveAntenova
INVICTA FLEXIBLE ANTENNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRFW082-100
ActiveAntenova
INVICTA FLEXIBLE ANTENNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRFW082-100 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Zigbee™, Bluetooth, Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2.8 dBi |
| Height (Max) | 0.15 mm |
| Height (Max) [Max] | 0.006 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Return Loss | -16 dB |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | IPEX MHF |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.57 | |
| 10 | $ 3.21 | |||
| 25 | $ 2.49 | |||
| 100 | $ 1.88 | |||
| 250 | $ 1.77 | |||
Description
General part information
STGWA80 Series
RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Flat Patch IPEX MHF Adhesive
