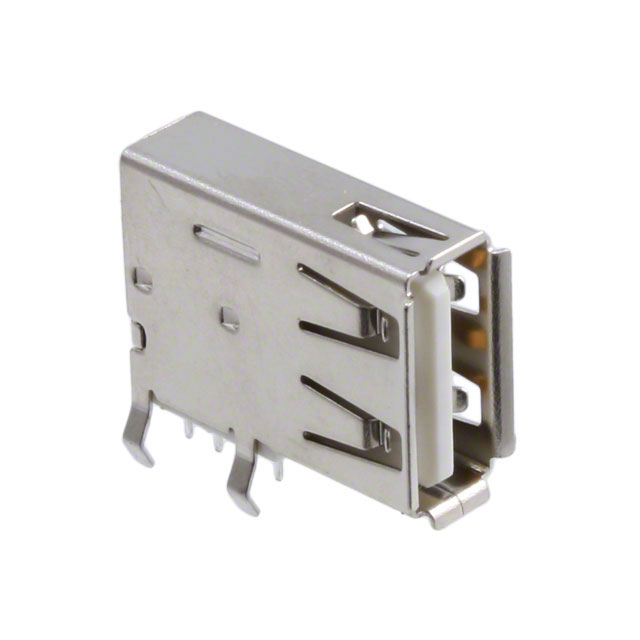

1002-014-01000 - 1002-014-01000

1002-014-01000

Active
CnC Tech, LLC

CONN RCPT USB2.0 TYPEA 4POS R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSoldering Recommendations for USBsUSB Soldering Profile (After DC 20/02)+1
1002-014-01000 - 1002-014-01000

1002-014-01000

Active
CnC Tech, LLC

CONN RCPT USB2.0 TYPEA 4POS R/A

Deep-Dive with AI

DocumentsSoldering Recommendations for USBsUSB Soldering Profile (After DC 20/02)+1

Technical Specifications

Parameters and characteristics for this part

Specification1002-014-01000
Connector TypeUSB-A (USB TYPE-A)
Contact FinishGold
Current Rating (Amps)1.5 A
GenderReceptacle
Material Flammability RatingUL94 V-0
Mounting FeatureVertical, Flag
Mounting TypeThrough Hole, Right Angle
Number of Contacts [custom]4
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-55 °C
Shell/Shielding MaterialSteel, Brass
SpecificationsUSB 2.0
TerminationSolder
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 1.17
10$ 1.02
25$ 0.97
40$ 0.95
80$ 0.91
230$ 0.82
440$ 0.76

Description

General part information

1002-014 Series

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
