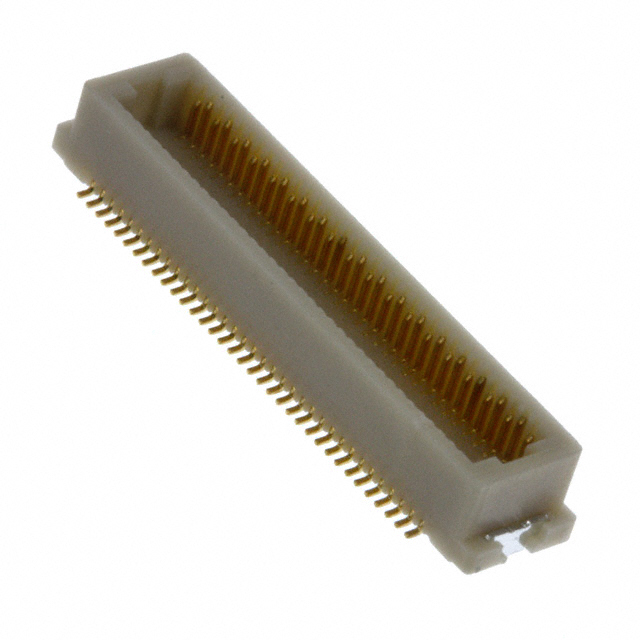

70P-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
70P-JMDSS-G-1-TF
ActiveJST Sales America Inc.
CONN PLUG 70POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 70P-JMDSS-G-1-TF |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.85 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.37 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.21 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.84 | |||
| Digi-Reel® | 1 | $ 2.85 | ||
| 10 | $ 2.48 | |||
| 25 | $ 2.37 | |||
| 50 | $ 2.32 | |||
| 100 | $ 2.21 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.84 | |||
| Tape & Reel (TR) | 1500 | $ 1.53 | ||
| 3000 | $ 1.48 | |||
Description
General part information
70P-JMDS Series
70 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
