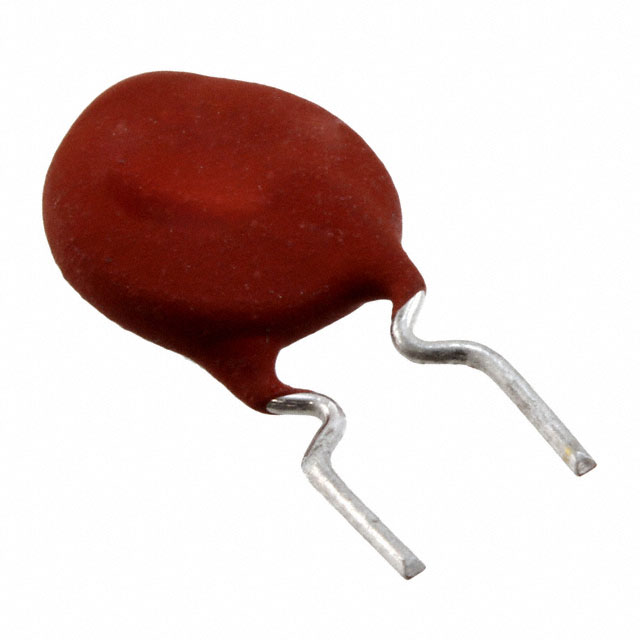

PTGL09AR250H8B52A0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 150MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 265V 150MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Resistance - 25°C (Typ)	Current - Hold (Ih) (Max) [Max]	Mounting Type	Lead Spacing	Lead Spacing	Current - Trip (It)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Max [Max]	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Max [Max]	Size / Dimension [custom]	Size / Dimension [custom]	Approval Agency	Height - Seated (Max) [Max]
Murata Power Solutions Inc. PTGL09ARR33M1B51A0	Disc Radial	330 mOhms	875 mA	Through Hole	5 mm	0.197 in	1.625 A	-10 °C	60 °C	16 V	Ceramic	14 mm	0.551 "	0.138 in	3.5 mm	0.354 in	9 mm	7 A
Murata Power Solutions Inc. PTGL09AR4R7M3B51A0	Disc Radial	4.7 Ohms	350 mA	Through Hole	5 mm	0.197 in	600 mA	-10 °C	60 °C	56 V	Ceramic	15.5 mm	0.61 "			0.374 "	9.5 mm	2 A	0.157 in	4 mm
Murata Power Solutions Inc. PTGL09AR390N0B52A0	Disc Radial	39 Ohms	115 mA	Through Hole	5 mm	0.197 in	245 mA	-10 °C	60 °C	250 V	Ceramic		0.63 in			0.394 in	10 mm	600 mA	0.236 "	6 mm	UL	16 mm
Murata Power Solutions Inc. PTGL09AR250H8B52A0	Disc Radial	25 Ohms	150 mA	Through Hole	5 mm	0.197 in	290 mA	-10 °C	60 °C	265 V	Ceramic		0.63 in			0.394 in	10 mm	1 A	0.236 "	6 mm		16 mm
Murata Power Solutions Inc. PTGL09AR250H8B52B0	Disc Radial	25 Ohms	150 mA	Through Hole	5 mm	0.197 in	290 mA	-10 °C	60 °C	265 V	Ceramic		0.63 in			0.394 in	10 mm	1 A	0.236 "	6 mm	UL	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ceramic PTC Resettable Fuse 265V 150 mA Ih Through Hole Radial, Disc
