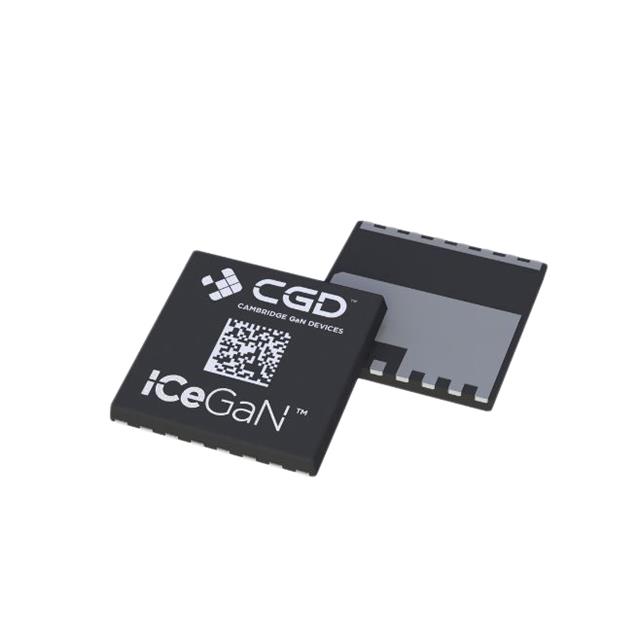

CGD65A130S2-T13
ActiveCambridge GaN Devices
650V GAN HEMT, 130MOHM, DFN8X8.
Deep-Dive with AI
Search across all available documentation for this part.
CGD65A130S2-T13
ActiveCambridge GaN Devices
650V GAN HEMT, 130MOHM, DFN8X8.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGD65A130S2-T13 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 12 A |
| Drain to Source Voltage (Vdss) | 650 V |
| Drive Voltage (Max Rds On, Min Rds On) | 12 V, 12 V |
| FET Feature | Current Sensing |
| Gate Charge (Qg) (Max) @ Vgs | 2.3 nC |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-PowerVDFN |
| Supplier Device Package | 16-DFN (8x8) |
| Technology | GaNFET (Gallium Nitride) |
| Vgs (Max) [Max] | 20 V |
| Vgs (Max) [Min] | -1 V |
| Vgs(th) (Max) @ Id | 4.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.25 | |
| 10 | $ 5.36 | |||
| 100 | $ 4.46 | |||
| 500 | $ 3.94 | |||
| 1000 | $ 3.55 | |||
| Digi-Reel® | 1 | $ 6.25 | ||
| 10 | $ 5.36 | |||
| 100 | $ 4.46 | |||
| 500 | $ 3.94 | |||
| 1000 | $ 3.55 | |||
| Tape & Reel (TR) | 3500 | $ 3.32 | ||
Description
General part information
CGD65A130S2-T13
650 V 12A (Tc) Surface Mount 16-DFN (8x8)
Documents
Technical documentation and resources
No documents available
