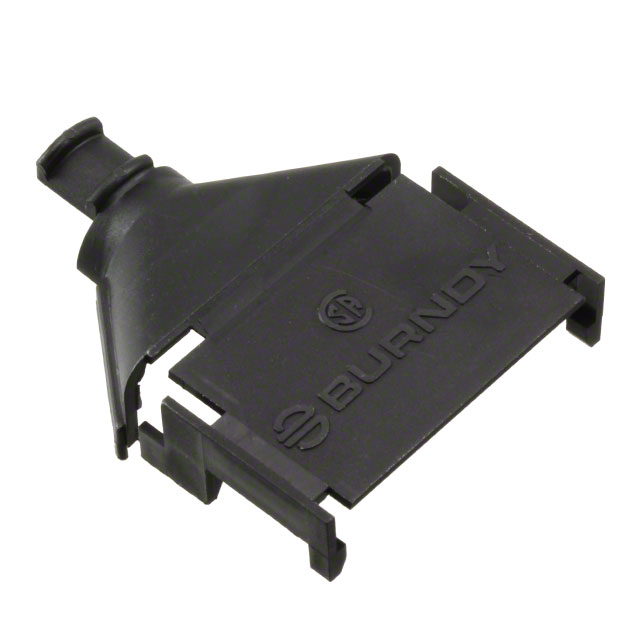

SMS24H1

Unknown

Souriau-Sunbank by Eaton

SMS STRAIN RELIEF HOOD

Search across all available documentation for this part.

Unknown

Souriau-Sunbank by Eaton

SMS STRAIN RELIEF HOOD

Technical Specifications

Parameters and characteristics for this part

Specification	SMS24H1

Accessory Type	Strain Relief
For Use With/Related Products	SMS Series
Number of Positions	24

Part	Ingress Protection	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Shrouding	Style	Insulation Color	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Shape	Mounting Type	Contact Finish - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Type	Number of Positions Loaded	Insulation Material	Connector Type	Accessory Type	For Use With/Related Products
Souriau-Sunbank by Eaton SMS24GE4	IP40	23.85 mm	0.939 "	5.08 mm	0.2 in	3.5 mm	0.138 in	Locking Ramp	Unshrouded	Board to Cable/Wire	Black	UL94 V-0	Mounting Flange	105 ░C	-55 °C	6	13.35 mm	0.526 in	7.5 A	16 Áin	0.41 Ám	5.08 mm	0.2 "	24	Circular	Through Hole	Gold	Solder	0.28 in	7.11 mm	Brass	Male Pin	All	Polyester Glass Filled	Header
Souriau-Sunbank by Eaton SMS24H1																								24												Strain Relief	SMS Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Strain Relief For SMS Series
