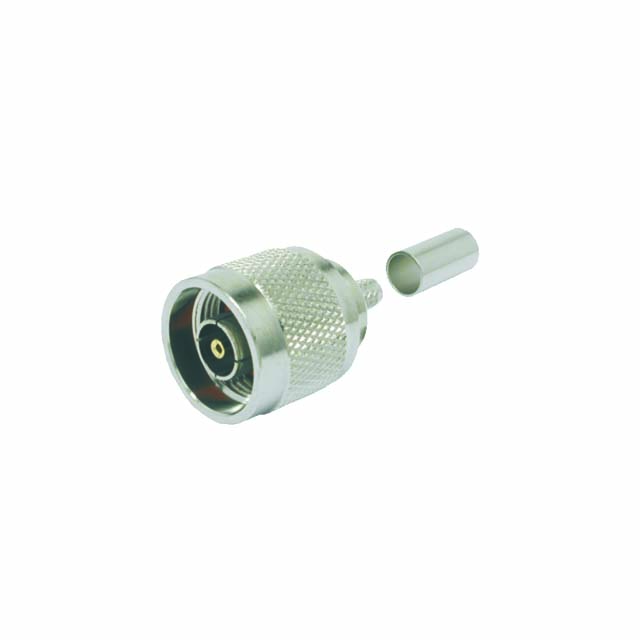

TC-200-NM-RP

Obsolete

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR, (

Deep-Dive with AI

Search across all available documentation for this part.

TC-200-NM-RP

Obsolete

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR, (

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC-200-NM-RP

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-200
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

TC-200 Series

Part	Body Finish	Center Contact Material	Frequency - Max [Max]	Contact Termination	Number of Ports	Center Contact Plating	Connector Style	Shield Termination	Body Material	Mounting Type	Cable Group	Impedance	Mating Cycles	Dielectric Material	Voltage Rating	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type
Amphenol Times Microwave Systems TC-200-FMEF-X	White Bronze	Beryllium Copper Brass	2 GHz	Solder	1	Gold	FME	Crimp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms	500	Polytetrafluoroethylene (PTFE)	500 V	Silver	Female Socket Jack	-55 °C	125 °C
Amphenol Times Microwave Systems TC-200-SM-SS-X		Brass	2.5 GHz	Solder	1	Gold	SMA	Crimp	Stainless Steel	Free Hanging (In-Line)	LMR-200	50 Ohms		Polytetrafluoroethylene (PTFE)		Silver	Male Pin Plug	-40 °C	85 °C
Amphenol Times Microwave Systems TC-200-TMC	Silver	Brass	3 GHz	Solder	1	Gold	TNC	Clamp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms		Polytetrafluoroethylene (PTFE)	500 V	Silver	Male Pin Plug	-40 °C	85 °C
Amphenol Times Microwave Systems TC-200-FMEM-X	White Bronze	Brass	2 GHz	Solder	1	Gold	FME	Crimp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms	500	Polytetrafluoroethylene (PTFE)	500 V	Silver	Male Pin Plug	-55 °C	125 °C
Amphenol Times Microwave Systems TC-200-BM-X	White Bronze	Brass	4 GHz	Solder	1	Gold	BNC	Crimp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms		Polytetrafluoroethylene (PTFE)		Silver	Male Pin Plug	-65 ░C	165 °C	Bayonet Lock
Amphenol Times Microwave Systems TC-200-SM-RP		Brass	2.5 GHz	Solder	1	Gold	RP-SMA	Crimp	Stainless Steel	Free Hanging (In-Line)	LMR-200	50 Ohms		Polytetrafluoroethylene (PTFE)	750 VDC	Silver	Female Socket Plug	-40 °C	85 °C
Amphenol Times Microwave Systems TC-200-MUHF	Nickel	Brass	2.5 GHz	Solder	1	Gold	Mini UHF	Crimp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms		Polyoxymethylene (POM)		Silver	Male Pin Plug	-40 °C	85 °C
Amphenol Times Microwave Systems TC-200-SM-RA-D
Amphenol Times Microwave Systems TC-200-NM-RP	Nickel	Brass	1 GHz	Solder	1	Gold	RP-N Type	Crimp	Brass	Free Hanging (In-Line)	LMR-200	50 Ohms		Polytetrafluoroethylene (PTFE)		Silver	Female Socket Plug	-40 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TC-200 Series

RP-N Type Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
