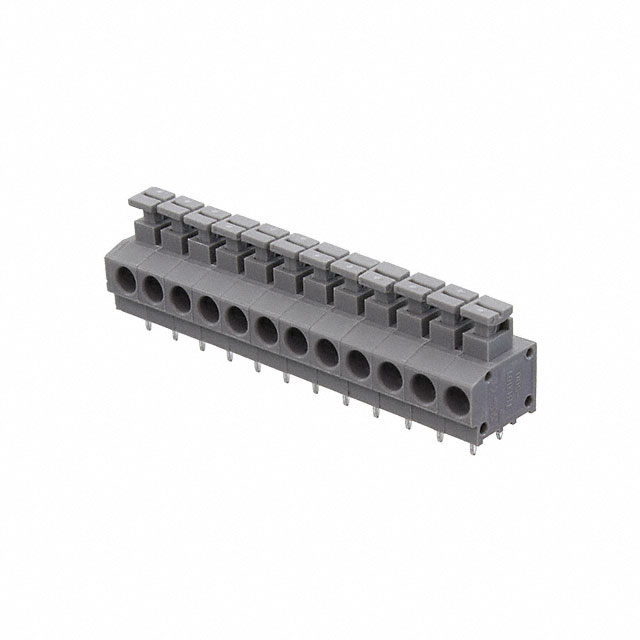

TBL001-500-12GY-2GY

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.00,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBL001-500-12GY-2GY

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.00,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBL001-500-12GY-2GY

Clamp Material - Plating	Stainless, Steel
Color	Gray
Contact Material - Plating	Copper Alloy - Tin Plated
Current	5 A
Features	Push Button Actuated, Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	12
Voltage	300 V
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG
Wire Termination	Screwless - Push Button Clamp

TBL001 Series

Part	Number of Levels	Current	Voltage	Contact Material - Plating	Features	Mounting Type	Wire Termination	Positions Per Level	Clamp Material - Plating	Color	Pitch [x]	Pitch [x]	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Min]	Operating Temperature [Max]
CUI Devices TBL001-500-05GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	5	Stainless Steel	Gray	5 mm	0.197 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-381-04GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	4	Stainless Steel	Gray	3.81 mm	0.15 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-500-02GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	2	Stainless Steel	Gray	5 mm	0.197 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-500-06GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	6	Stainless Steel	Gray	5 mm	0.197 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-381-03GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	3	Stainless Steel	Gray	3.81 mm	0.15 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-500-04GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	4	Stainless Steel	Gray	5 mm	0.197 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-381-02GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	2	Stainless Steel	Gray	3.81 mm	0.15 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C
CUI Devices TBL001-500-12GY-2GY	1	5 A	300 V	Copper Alloy - Tin Plated	Interlocking (Side) Push Button Actuated	Through Hole	Screwless - Push Button Clamp	12	Stainless Steel	Gray	5 mm	0.197 in	Horizontal with Board	17.5 AWG	20 AWG	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.02
		10	$ 2.29
		27	$ 2.12
		54	$ 1.91
		81	$ 1.86
		243	$ 1.63
		459	$ 1.49
		945	$ 1.35
		4914	$ 1.19

Description

General part information

TBL001 Series

12 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
