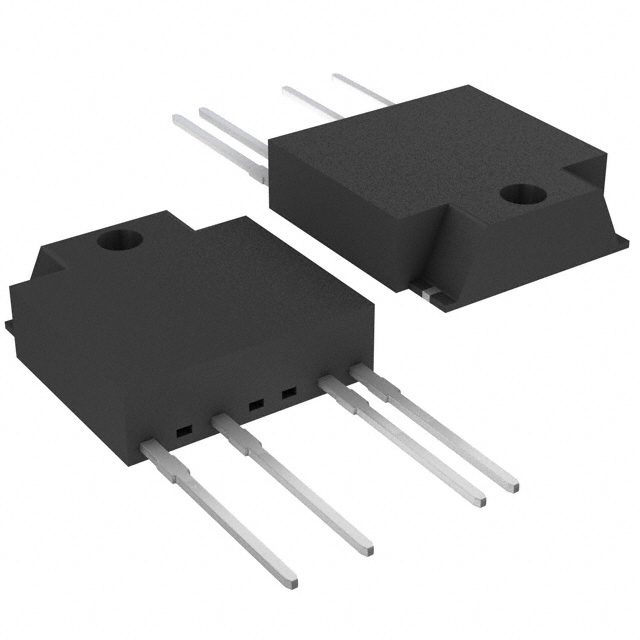

S101N12
ObsoleteSharp Microelectronics
SSR RELAY SPST-NO 1.6A 80-120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S101N12
ObsoleteSharp Microelectronics
SSR RELAY SPST-NO 1.6A 80-120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S101N12 |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Load Current | 1.6 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC, Zero Cross |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 120 V |
| Voltage - Load [Min] | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S101N1 Series
Solid State SPST-NO (1 Form A) 4-SIP
