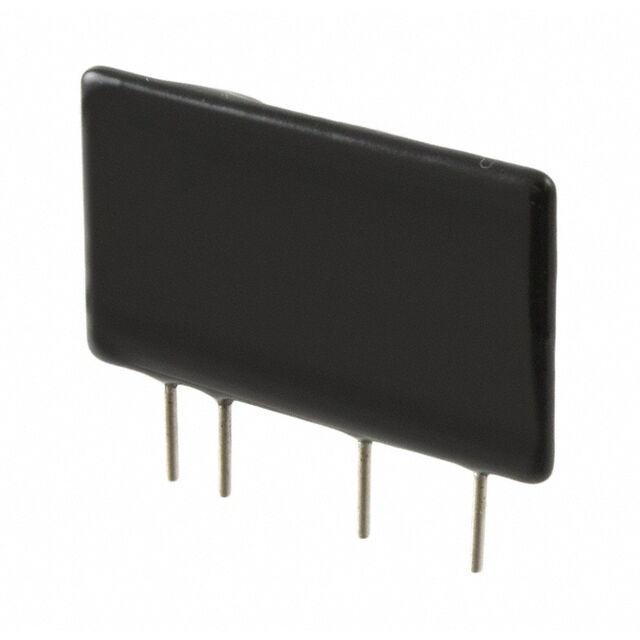

SSRC-480D5R
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 5A 48-660V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSRC-480D5R
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 5A 48-660V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSRC-480D5R |
|---|---|
| Load Current | 5 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 15 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Load [Max] | 660 V |
| Voltage - Load [Min] | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 31.81 | |
Description
General part information
SSRC-480 Series
Solid State SPST-NO (1 Form A) 4-SIP
