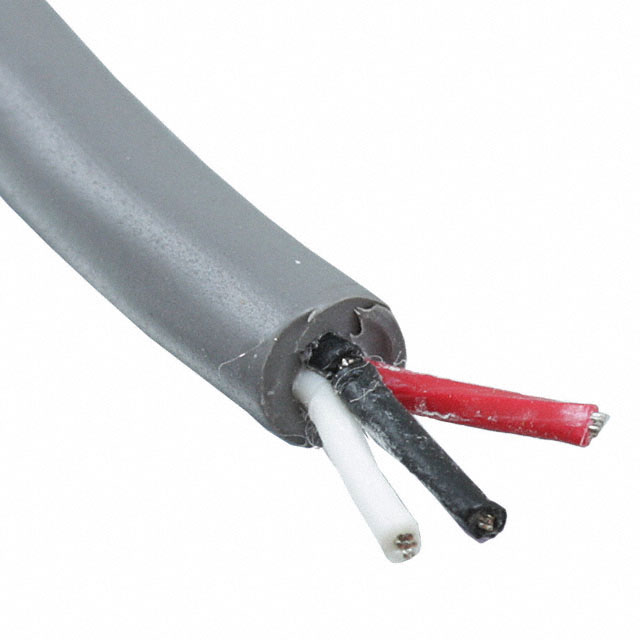

1896L SL005

Active

ALPHA WIRE

CABLE 3COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1896L SL005

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Conductor Material	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Cable Type	Jacket Color	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1896L SL001	Copper Tinned	Low Smoke Zero Halogen (LSZH)	0.025 in	0.635 mm	3	Multi-Conductor	Slate	Communication Control	0.189 in	4.8 mm	20 AWG	28	7	300 V	1000 ft	304.8 m
ALPHA WIRE 1896L SL005	Copper Tinned	Low Smoke Zero Halogen (LSZH)	0.025 in	0.635 mm	3	Multi-Conductor	Slate	Communication Control	0.189 in	4.8 mm	20 AWG	28	7	300 V			30.5 m	100 ft
ALPHA WIRE 1896L SL002	Copper Tinned	Low Smoke Zero Halogen (LSZH)	0.025 in	0.635 mm	3	Multi-Conductor	Slate	Communication Control	0.189 in	4.8 mm	20 AWG	28	7	300 V			152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
