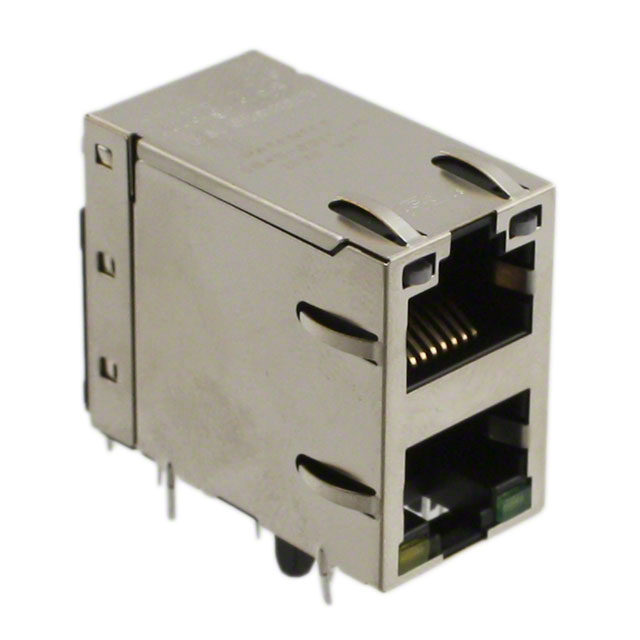

0845-2D1T-E4

Active

BEL MAGNETIC SOLUTIONS

CONN JACK 2PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

CONN JACK 2PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	0845-2D1T-E4

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Board Guide
Height Above Board	1.08 in
Height Above Board	27.43 mm
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	12
Number of Ports	2
Number of Rows	2
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Up and Down
Termination	Solder

Part	Connector Type	Height Above Board	Height Above Board	Tab Direction	Shield Material	Termination	Shielding	Housing Material	Number of Rows	Contact Finish	Orientation	Mounting Type	Number of Ports	Applications	Features	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Cores per Jack
BEL MAGNETIC SOLUTIONS 0845-2D1T-H5	RJ45	1.08 in	27.43 mm	Up and Down	Copper Alloy	Solder	Shielded EMI Finger	Polybutylene Terephthalate (PBT)	2	Gold	90 °	Through Hole	2	10/100 Base-T AutoMDIX	Board Guide	Yellow - Green	50 µin	1.27 µm
BEL MAGNETIC SOLUTIONS 0845-2D1T-E4	RJ45	1.08 in	27.43 mm	Up and Down	Copper Alloy	Solder	Shielded EMI Finger	Polybutylene Terephthalate (PBT)	2	Gold	90 °	Through Hole	2	10/100/1000 Base-T AutoMDIX	Board Guide	Yellow - Green	50 µin	1.27 µm	12
