BL2600C1865003S1PGMG

Active

GlobTek, Inc.

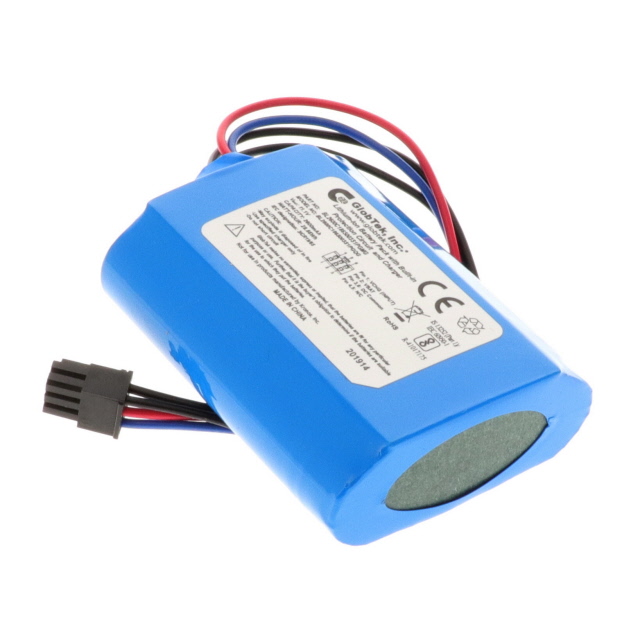

BATT LITH-ION 11.1V 2.6AH 18650

Search across all available documentation for this part.

Active

GlobTek, Inc.

BATT LITH-ION 11.1V 2.6AH 18650

Technical Specifications

Parameters and characteristics for this part

Specification	BL2600C1865003S1PGMG

Battery Cell Size	18650
Battery Chemistry	Lithium-Ion
Capacity	2.6 Ah
Discharge Rate	2.6 A
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension	70
Size / Dimension [x]	2.76 in
Standard Charge Current	1.3 A
Standard Charge Time	2.5 hrs
Termination Style	Molex Microfit 43025-0608
Voltage - Rated	11.1 V

Part	Standard Charge Current	Battery Cell Size	Capacity	Standard Charge Time	Voltage - Rated	Battery Chemistry	Discharge Rate	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Shipping Info	Size / Dimension	Termination Style
GlobTek, Inc. BL2600C18654S1PG2646	1.3 A	18650	2.6 Ah	2.5 hrs	14.8 V	Lithium-Ion	2.6 A	76 mm	2.64 "	2.99 in	67 mm	27 mm	1.06 in	Due to restrictions only ground shipment is allowed.
GlobTek, Inc. BL2600C1865003S1PGMG	1.3 A	18650	2.6 Ah	2.5 hrs	11.1 V	Lithium-Ion	2.6 A			2.76 in				Due to restrictions only ground shipment is allowed.	70	Molex Microfit 43025-0608

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18650 11.1 V Lithium-Ion Battery Rechargeable (Secondary) 2.6Ah
