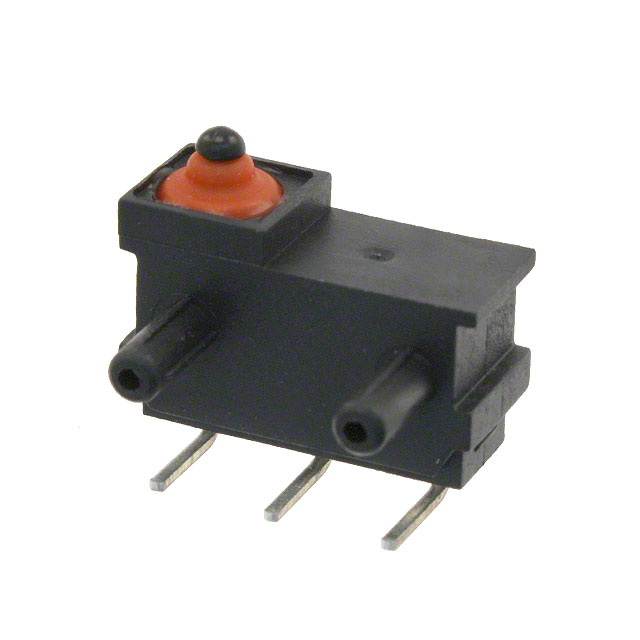

ZD30S60A05-Z
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZD30S60A05-Z
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPDT 100MA 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZD30S60A05-Z |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A, 100 mA |
| Differential Travel | 0.008 in |
| Differential Travel | 0.2 mm |
| Electrical Life | 6000 Cycles |
| Features | Support Posts |
| Ingress Protection | IP00 |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 130 gf |
| Operating Position | 0.27 in |
| Operating Position | 6.85 mm |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.76 mm |
| Overtravel | 0.03 in |
| Pretravel | 0.03 in |
| Pretravel | 0.8 mm |
| Release Force | 13 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ZD30S Series
Switch SPDT Through Hole, Right Angle
