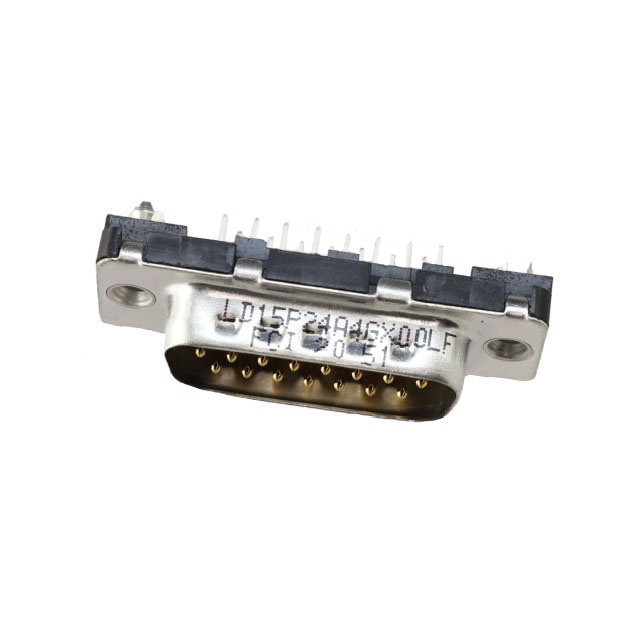

LD15P24A4GX00LF

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN D-SUB PLUG 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	LD15P24A4GX00LF

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Contact Material	Features	Current Rating (Amps)	Dielectric Material	Contact Type	Number of Rows	Number of Positions	Flange Feature	Shell Size, Connector Layout	Termination	Material Flammability Rating	Voltage Rating	Mounting Type	Contact Finish Thickness	Shell Material, Finish	Connector Style	Contact Finish	Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) LD15P24A4GX00LF	Male Pins Plug	Copper Alloy	Board Lock Grounding Indents	5 A	Thermoplastic	Signal	2	15	Housing/Shell (4-40)	2	Solder	UL94 V-0	250 VDC	Through Hole	Flash	Steel Tin-Nickel Plated	D-Sub	Gold	Black	105 ░C	-55 °C
