QADA-65-12-1401

Active

Qualtek

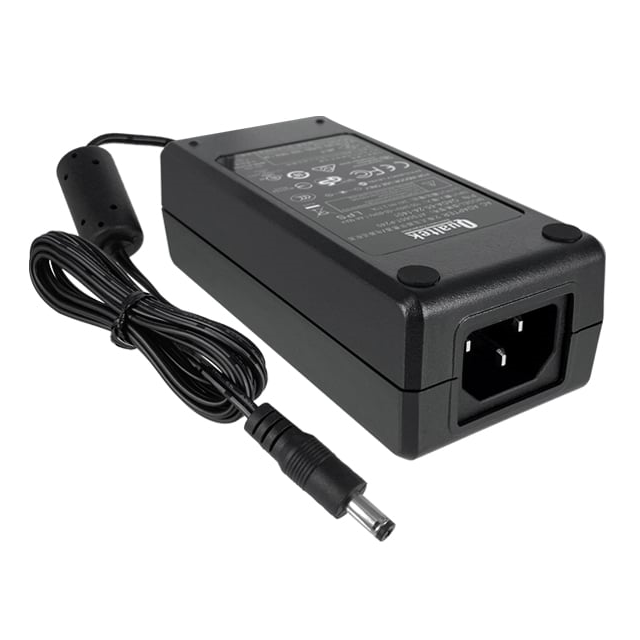

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Supply Adapter Output Plug Guide

QADA-65-12-1401

Active

Qualtek

AC/DC DESKTOP ADAPTER 12V 60W

Deep-Dive with AI

DocumentsDatasheet Power Supply Adapter Output Plug Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QADA-65-12-1401

Applications	ITE (Commercial)
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	5 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption	210 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output	12 V

QADA-65 Series

Part	Input Type	Region Utilized	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Power (Watts)	Cord Length	Cord Length	Polarization	Current - Output (Max) [Max]	No Load Power Consumption	Form	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications
Qualtek QADA-65-48-1401	Cord	International	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	65 W	1.5 m	59 in	Positive Center	1.36 A	210 mW	Desktop (Class I)	IEC 320-C14	240 VAC	100 VAC	48 V	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm
Qualtek QADA-65-19-0801	Cord	International	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	65 W	1.5 m	59 in	Positive Center	3.43 A	210 mW	Desktop (Class II)	IEC 320-C8	240 VAC	100 VAC	19 V	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm
Qualtek QADA-65-48-0801	Cord	International	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	65 W	1.5 m	59 in	Positive Center	1.36 A	210 mW	Desktop (Class II)	IEC 320-C8	240 VAC	100 VAC	48 V	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm
Qualtek QADA-65-15-1401	Cord	International	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	65 W	1.5 m	59 in	Positive Center	4.34 A	210 mW	Desktop (Class I)	IEC 320-C14	240 VAC	100 VAC	15 VDC	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm
Qualtek QADA-65-12-1401	Cord	International	Level VI	Barrel Plug	2.1 mm 5.5 mm	11 mm	40 °C	60 W	1.5 m	59 in	Positive Center	5 A	210 mW	Desktop (Class I)	IEC 320-C14	240 VAC	100 VAC	12 V	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.97
		5	$ 29.50
		10	$ 29.04
		25	$ 27.66
		50	$ 26.74
		100	$ 24.89
		250	$ 24.53

Description

General part information

QADA-65 Series

12V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Documents

Technical documentation and resources

Datasheet

Power Supply Adapter Output Plug Guide

Datasheet
