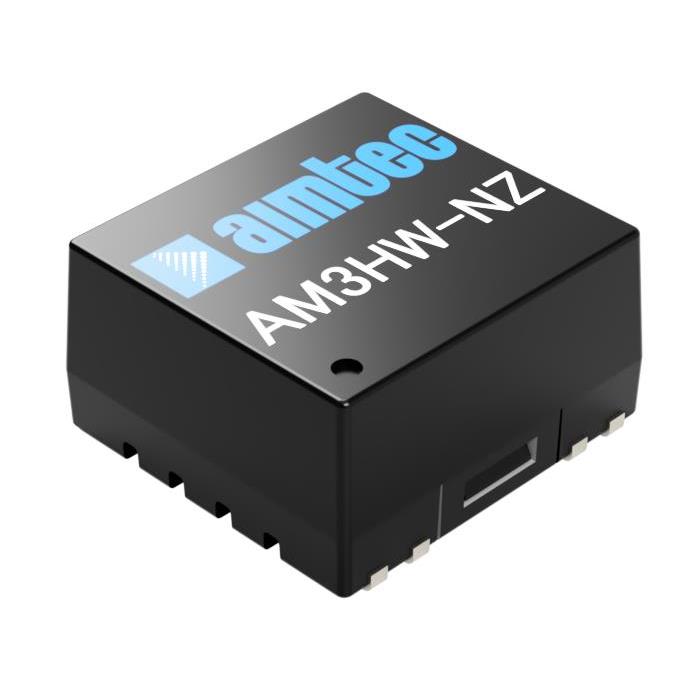

AM3HW-2415S-NZ
Obsoleteaimtec
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM3HW-2415S-NZ
Obsoleteaimtec
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM3HW-2415S-NZ |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, cURus |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 83 % |
| Features | Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module, 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.76 " |
| Size / Dimension [x] | 19.2 mm |
| Size / Dimension [y] | 0.71 in |
| Size / Dimension [y] | 18.1 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.24 | |
Description
General part information
AM3HW Series
Isolated Module DC DC Converter 1 Output 15V 200mA 9V - 36V Input
