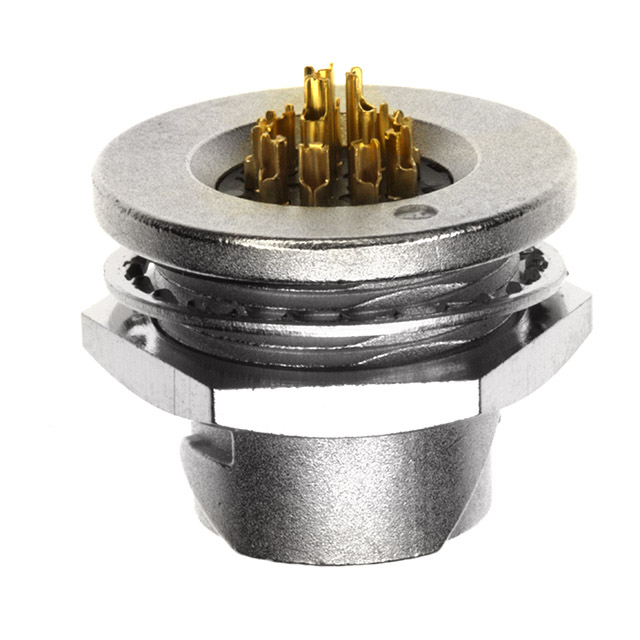

LF10WBRB-12S
ActiveHirose Electric USA, Inc.
CIRCULAR CONNECTOR, 12 CONTACT(S), ZINC ALLOY, FEMALE, CRIMP TERMINAL, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LF10WBRB-12S
ActiveHirose Electric USA, Inc.
CIRCULAR CONNECTOR, 12 CONTACT(S), ZINC ALLOY, FEMALE, CRIMP TERMINAL, RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LF10WBRB-12S |
|---|---|
| Applications | Telecommunications, Industrial |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10 |
| Voltage Rating | 30 VAC, 42 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.08 | |
| 10 | $ 13.93 | |||
| 25 | $ 13.21 | |||
| 50 | $ 13.01 | |||
| 100 | $ 11.48 | |||
| 250 | $ 10.72 | |||
| 450 | $ 10.49 | |||
| 950 | $ 9.95 | |||
Description
General part information
LF10WBRB Series
12 Position Circular Connector Receptacle, Female Sockets Solder Cup
