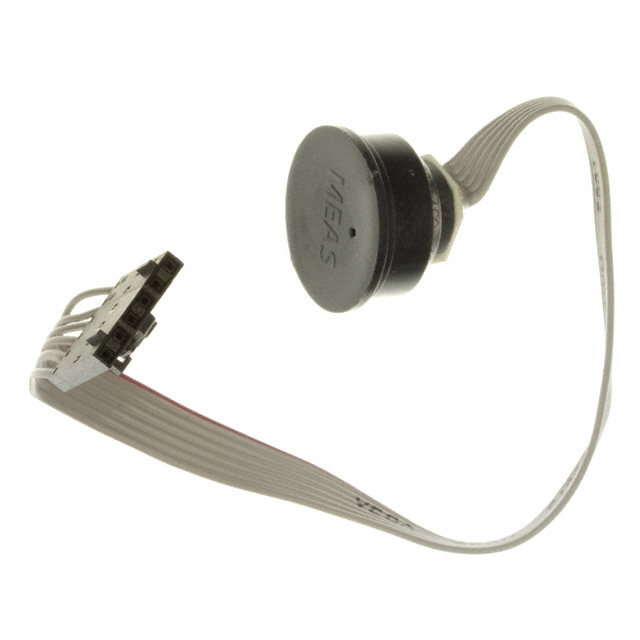

86-015G-C
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSIG 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
86-015G-C
ActiveTE Connectivity Measurement Specialties
SENSOR 15PSIG 0.1V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 86-015G-C |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 310.26 kPa |
| Maximum Pressure [Max] | 45 PSI |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder |
| Port Style | No Port |
| Pressure Type | Vented Gauge |
| Termination Style | Cable with Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.89 | |
| 10 | $ 75.69 | |||
| 25 | $ 70.96 | |||
| 100 | $ 68.60 | |||
Description
General part information
86-015 Series
Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV Cylinder
Documents
Technical documentation and resources
No documents available
