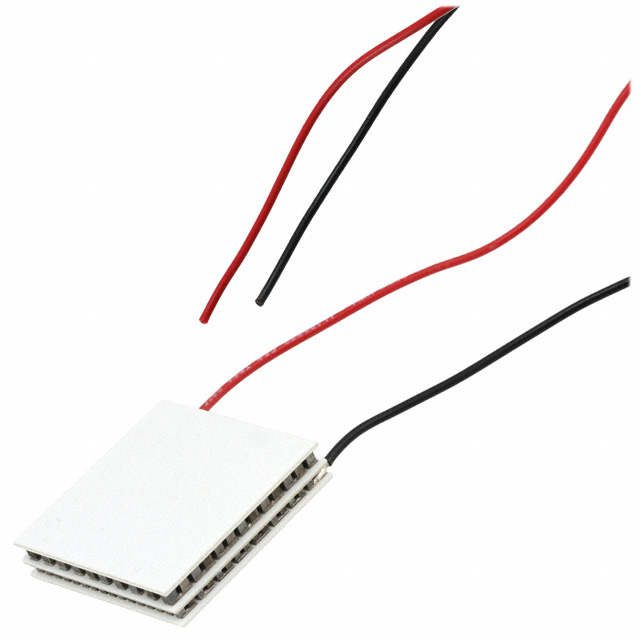

9350007-302

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,15,25,11,RT,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

MS2,192,14,20,15,25,11,RT,W8

Technical Specifications

Parameters and characteristics for this part

Specification	9350007-302

Delta Tmax @ Th	88 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	8.1 mm
Number of Stages	2
Operating Temperature	80 °C
Qmax @ Th	27 W
Size / Dimension [x]	40 mm
Size / Dimension [y]	40 mm
Voltage - Max [Max]	16.1 V

Part	Voltage - Max [Max]	Number of Stages	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features	Operating Temperature	Delta Tmax @ Th
Laird Thermal Systems, Inc. 9350007-301	16.1 V	2	27 W	40 mm	40 mm	8.1 mm	Lead Wires Non-Sealed	80 °C	88 °C
Laird Thermal Systems, Inc. 9350007-302	16.1 V	2	27 W	40 mm	40 mm	8.1 mm	Lead Wires Sealed - Silicone RTV	80 °C	88 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 27.0W @ 25°C 4.5 A 80°C
