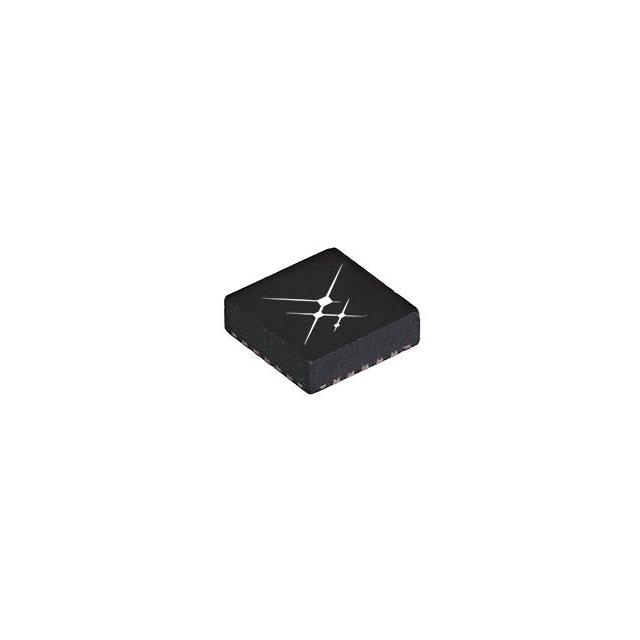

SKY12248-492LF
ActiveSkyworks Solutions Inc.
RF SWITCH ICS HIGH-POWER SPDT SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY12248-492LF
ActiveSkyworks Solutions Inc.
RF SWITCH ICS HIGH-POWER SPDT SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY12248-492LF |
|---|---|
| Circuit | SPST |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 500 MHz |
| IIP3 | 72 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 1.3 dB |
| Isolation | 20 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 16-LQFN Exposed Pad |
| RF Type | LTE, TD-SCDMA, WiMax |
| Supplier Device Package | 16-QFN (4x4) |
| Test Frequency | 6 GHz |
| Voltage - Supply | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.85 | |
| 10 | $ 9.80 | |||
| 25 | $ 9.35 | |||
| 100 | $ 8.12 | |||
| 250 | $ 7.75 | |||
| 500 | $ 7.07 | |||
| 1000 | $ 6.16 | |||
| Digi-Reel® | 1 | $ 10.85 | ||
| 10 | $ 9.80 | |||
| 25 | $ 9.35 | |||
| 100 | $ 8.12 | |||
| 250 | $ 7.75 | |||
| 500 | $ 7.07 | |||
| 1000 | $ 6.16 | |||
| Tape & Reel (TR) | 3000 | $ 5.64 | ||
Description
General part information
SKY12248 Series
RF Switch IC LTE, TD-SCDMA, WiMax SPST 50Ohm 16-QFN (4x4)
