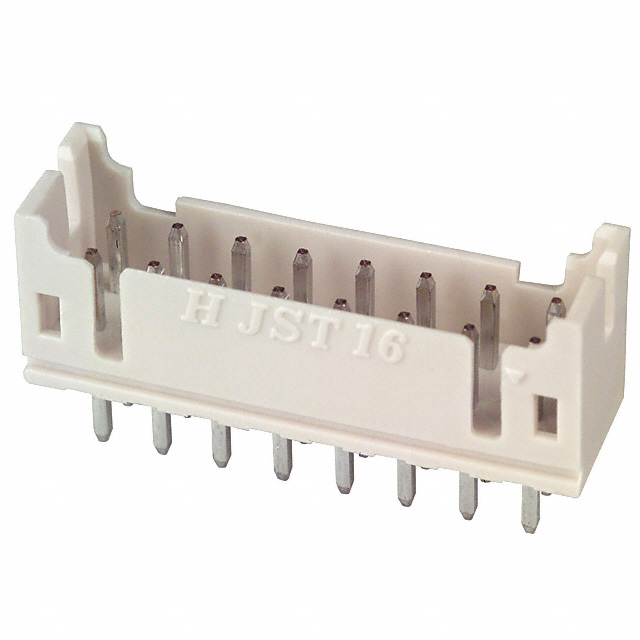

B16B-PHDSS

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

B16B-PHDSS

Active

JST Sales America Inc.

CONN HEADER VERT 16POS 2MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B16B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.291 in
Overall Contact Length	7.4 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

B16B-PH Series

Part	Number of Rows	Connector Type	Voltage Rating	Shrouding	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Mounting Type	Number of Positions Loaded	Fastening Type	Contact Shape	Number of Positions	Contact Material	Insulation Material	Contact Finish - Post	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Mated Stacking Heights	Current Rating (Amps)	Features	Contact Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length [x]	Overall Contact Length	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length
JST Sales America Inc. B16B-PH-SM4-TBT	1	Header	100 V	Shrouded - 4 Wall	Board to Cable/Wire	-25 °C	85 °C	Natural	Solder	Surface Mount	All	Detent Lock	Square	16	Copper Alloy	Nylon 6T Polyamide (PA6T)	Tin	0.26 in	6.6 mm	0.079 in	2 mm	8.6 mm	2 A	Pick and Place Solder Retention	Male Pin	UL94 V-0	0.13 in	3.3 mm
JST Sales America Inc. B16B-PH-K-S	1	Header	100 V	Shrouded - 4 Wall	Board to Cable/Wire	-25 °C	85 °C	Natural	Press-Fit Solder	Through Hole	All	Detent Lock	Square	16	Brass	Polyamide (PA66) Nylon 6/6	Tin	0.236 in	6 mm	0.079 in	2 mm	8 mm	2 A		Male Pin	UL94 V-0	0.13 in	3.3 mm	0.134 in	3.4 mm	0.333 in	8.45 mm
JST Sales America Inc. B16B-PH-KL	1	Header	100 V	Shrouded - 4 Wall	Board to Cable/Wire	-25 °C	85 °C	Gray	Press-Fit Solder	Through Hole	All	Detent Lock	Square	16	Copper Alloy	Polyamide (PA66) Nylon 6/6	Tin	0.236 in	6 mm	0.079 in	2 mm		2 A		Male Pin	UL94 V-0			0.134 in	3.4 mm
JST Sales America Inc. B16B-PH-SM4-TB	1	Header	100 V	Shrouded - 4 Wall	Board to Cable/Wire	-25 °C	85 °C	Natural	Solder	Surface Mount	All	Detent Lock	Square	16	Copper Alloy	Nylon 6T Polyamide (PA6T)	Tin	0.26 in	6.6 mm	0.079 in	2 mm	8.6 mm	2 A	Solder Retention	Male Pin	UL94 V-0	0.13 in	3.3 mm
JST Sales America Inc. B16B-PHDSS	2	Header	250 VDC	Shrouded - 4 Wall	Board to Cable/Wire	-25 °C	85 °C	Natural	Solder	Through Hole	All	Detent Lock	Square	16	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Tin	0.256 in	6.5 mm	0.079 in	2 mm	8.8 mm	3 A		Male Pin	UL94 V-0	0.114 in	2.9 mm				7.4 mm	0.079 in	2 mm	0.118 in	3 mm	0.291 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.64
		100	$ 0.49
		500	$ 0.41
		1000	$ 0.38
		5000	$ 0.32
		10000	$ 0.30

Description

General part information

B16B-PH Series

Connector Header Through Hole 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
