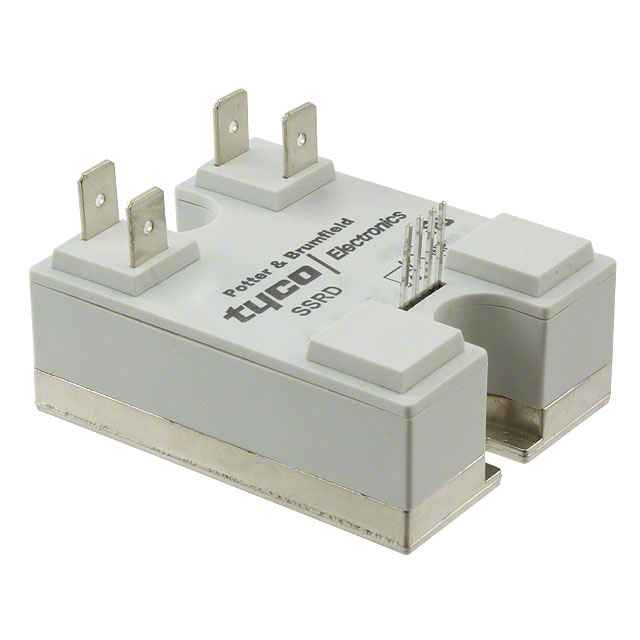

SSRD-240DE40
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 40A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSRD-240DE40
ActiveTE Connectivity Potter & Brumfield Relays
SSR RELAY SPST-NO 40A 24-280V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSRD-240DE40 |
|---|---|
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 40 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Supplier Device Package | Hockey Puck |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 118.91 | |
Description
General part information
SSRD-240 Series
Solid State SPST-NO (1 Form A) x 2 Hockey Puck
