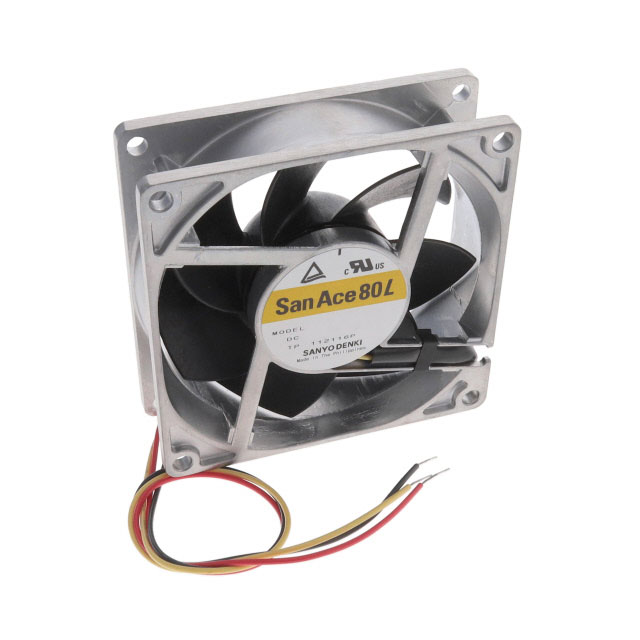

9LG0812J4D001

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25.2MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 80X25.2MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Bearing Type	Material - Blade	Power (Watts)	RPM	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Features	Lifetime @ Temp.	Material - Frame	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Current Rating (Amps)	Termination	Noise	Width [y]	Width [x]
Sanyo Denki America Inc. 9LG0812P4H001	12 VDC	13.2 VDC	10.8 VDC	130.18 g	0.287 lb	Ball	Plastic	1.44 W	3700 RPM	CSA TUV UL	80 mm	80 mm	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	180000 Hrs	Aluminum	36.3 CFM	1.02 m³/min	-20 °C	70 °C	-20 C	70 °C	42.3 Pa	0.17 in H2O	120 mA	4 Wire Leads	31 dB(A)	25 mm
Sanyo Denki America Inc. 9LG0812H4002	12 VDC	13.2 VDC	10.8 VDC			Ball	Plastic	1.44 W	3700 RPM	CSA TUV UL	80 mm	80 mm	Tubeaxial		180000 Hrs	Aluminum	36.3 CFM	1.02 m³/min	-20 °C	70 °C	-20 C	70 °C	42.3 Pa	0.17 in H2O	120 mA	2 Wire Leads	31 dB(A)	25 mm
Sanyo Denki America Inc. 9LG0812J4D001	12 VDC	13.2 VDC	10.8 VDC	130.18 g	0.287 lb	Ball	Plastic	7.2 W	7400 RPM	CSA TUV UL	80 mm	80 mm	Tubeaxial	Locked Rotor Sensor	180000 Hrs	Aluminum	73 CFM	2.04 m³/min	-20 °C	70 °C	-20 C	70 °C	176.9 Pa	0.71 in H2O	600 mA	3 Wire Leads	49 dB		25.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	40	$ 75.72

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 73.0 CFM (2.04m³/min) 3 Wire Leads
