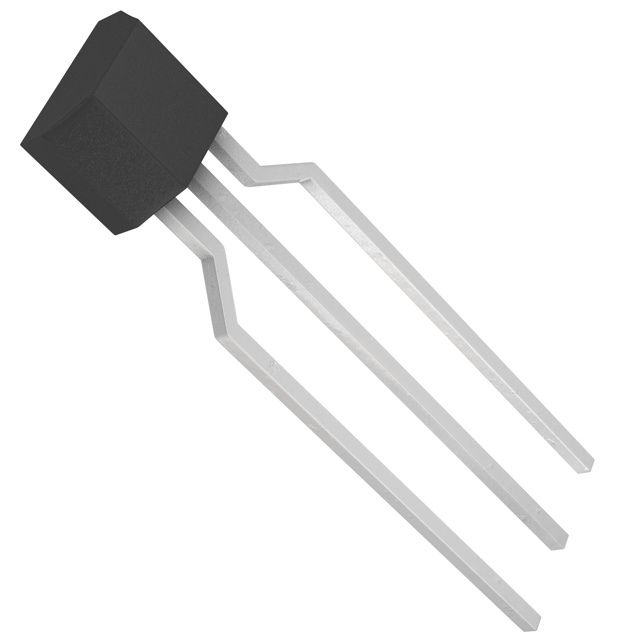

2SA1585STPQ

Obsolete

Rohm Semiconductor

TRANS PNP 20V 2A SPT

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

TRANS PNP 20V 2A SPT

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1585STPQ

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	240 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	SC-72 Formed Leads
Power - Max [Max]	400 mW
Supplier Device Package	SPT
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Supplier Device Package	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Operating Temperature
Rohm Semiconductor 2SA1585STPQ	240 MHz	20 V	120	Through Hole	500 mV	PNP	SPT	400 mW	2 A	SC-72 Formed Leads	100 nA	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 20 V 2 A 240MHz 400 mW Through Hole SPT
