BNCS007C00

Obsolete

JAE Electronics

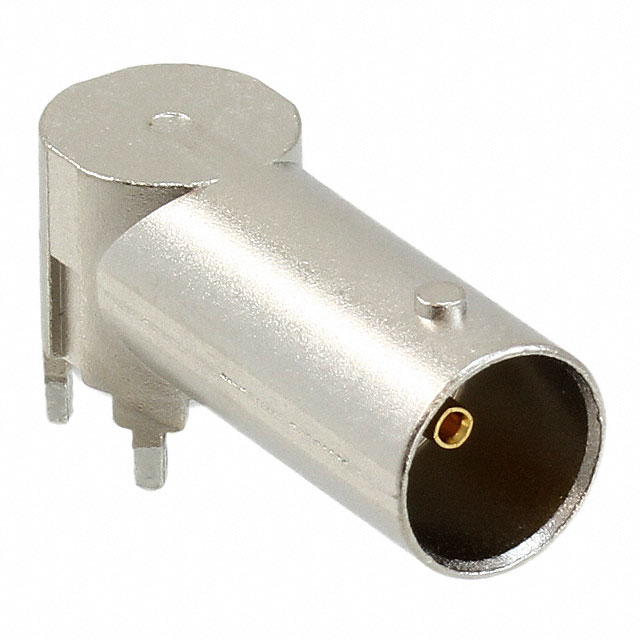

CONN BNC JACK R/A 75 OHM PCB

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN BNC JACK R/A 75 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	BNCS007C00

Body Finish	Nickel
Body Material	Zinc Alloy
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2.4 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Center Contact Plating	Number of Ports	Mounting Type	Shield Termination	Impedance	Connector Style	Body Finish	Frequency - Max [Max]	Dielectric Material	Connector Type	Body Material	Center Contact Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Housing Color
JAE Electronics BNCS007C00	Gold	1	Through Hole Right Angle	Solder	75 Ohms	BNC	Nickel	2.4 GHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Zinc Alloy	Phosphor Bronze	Bayonet Lock	85 °C	-40 °C	Solder	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Jack, Female Socket 75 Ohms Through Hole, Right Angle Solder
