M3TEK-2606R

Obsolete

3M (TC)

IDC CABLE - MSD26K/MC26M/MCE26K

Search across all available documentation for this part.

Obsolete

3M (TC)

IDC CABLE - MSD26K/MC26M/MCE26K

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Features	Length	Length	Length	Number of Rows	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Color
3M (TC) M3TEK-1006J	Gold	Socket to Card Edge	10	0.1 in	2.54 mm	Polarizing Key	152.4 mm	6 "	0.5 '	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm
3M (TC) M3TEK-1036R	Gold	Socket to Card Edge	10	0.1 in	2.54 mm	Polarizing Key				2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	3 ft	914.4 mm	Multiple Ribbon
3M (TC) M3TEK-1018J	Gold	Socket to Card Edge	10	0.1 in	2.54 mm	Polarizing Key				2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	1.5 ft	457.2 mm
3M (TC) M3TEK-1018R	Gold	Socket to Card Edge	10	0.1 in	2.54 mm	Polarizing Key				2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm	1.5 ft	457.2 mm	Multiple Ribbon
3M (TC) M3TEK-2606R	Gold	Socket to Card Edge	26	0.1 in	2.54 mm	Polarizing Key	152.4 mm	6 "	0.5 '	2	IDC	Unshielded	0.76 Ám	30 Áin	0.05 "	1.27 mm			Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

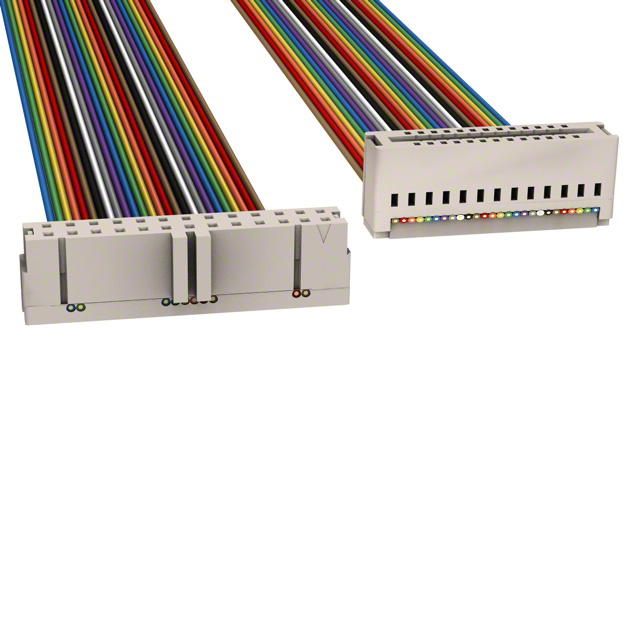

26 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
