NJU4066BM#

Active

Nisshinbo Micro Devices Inc

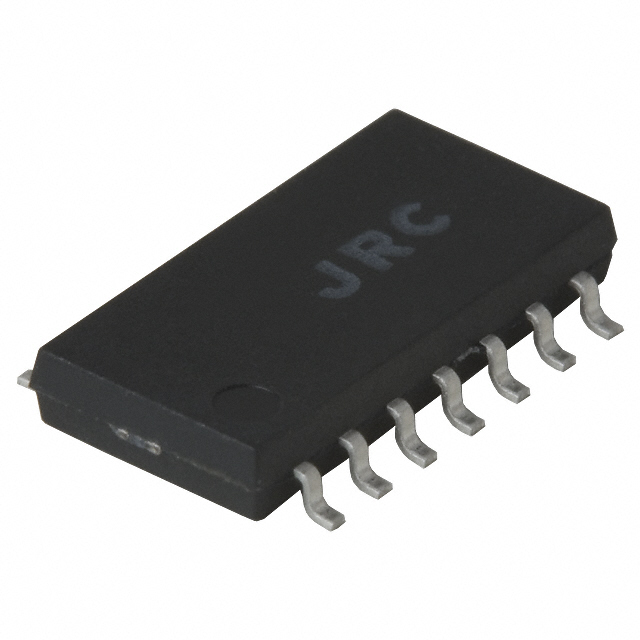

IC SWITCH SPST-NOX4 240OHM 14DMP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC SWITCH SPST-NOX4 240OHM 14DMP

Technical Specifications

Parameters and characteristics for this part

Specification	NJU4066BM#

Channel Capacitance (CS(off), CD(off)) [custom]	7.5 pF
Channel Capacitance (CS(off), CD(off)) [custom]	7.5 pF
Channel-to-Channel Matching (ΔRon)	5 Ohm
Crosstalk	-50 dB
Current - Leakage (IS(off)) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max) [Max]	240 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-SOIC
Package / Case [x]	0.197 in
Package / Case [y]	5 mm
Supplier Device Package	14-DMP
Switch Circuit	SPST - NO
Voltage - Supply, Single (V+) [Max]	18 V
Voltage - Supply, Single (V+) [Min]	3 V

Part	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Supplier Device Package	Number of Circuits	Current - Leakage (IS(off)) (Max) [Max]	Crosstalk	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Mounting Type	On-State Resistance (Max) [Max]	Multiplexer/Demultiplexer Circuit	Package / Case [y]	Package / Case	Package / Case [x]	Channel-to-Channel Matching (ΔRon)
Nisshinbo Micro Devices Inc NJU4066BM#	18 V	3 V	7.5 pF	7.5 pF	14-DMP	4	100 nA	-50 dB	85 °C	-40 °C	SPST - NO	Surface Mount	240 Ohm	1:1	5 mm	14-SOIC	0.197 in	5 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.54

General part information

4 Circuit IC Switch 1:1 240Ohm 14-DMP
